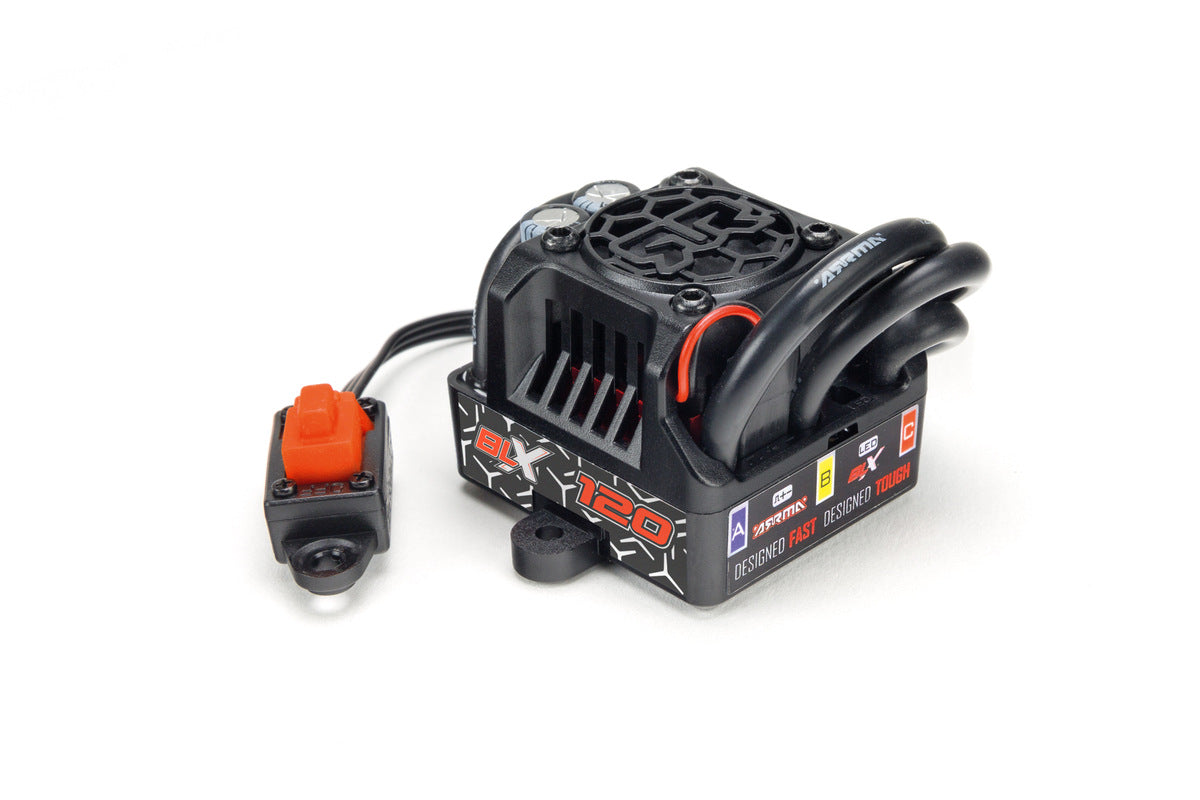

AR390264 BLX120 BRUSHLESS 4S ESC -ARA390264

$131.81
$131.81
      ⚡️ Free shipping over 100$* Canada
      ⚡️ Free shipping over 200$* USA
      * Except Oversize
      ⏱ Real time inventory
      Don't forget to click "notify me" for an out of stock product.
      We serve you in both English and French

      OVERVIEW:

      The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.

      FEATURES:

      Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

      The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

      SPECIFICATION

      Battery usage 3S LiPo (11.1V) or 4S LiPo (14.8V)
      Low Voltage Cut-Off (LVC) 3.4V per cell
      Thermal Protection Temperature 125°C / 257°F
      Over-Voltage Protection Over 17.2V
      BEC Voltage 6V
      BEC Current 3A
      ESC Length 43mm / 1.69"
      ESC Height 34mm / 1.34"
      ESC Width 54.5mm / 2.15" (Including hold-down tabs)
      ESC Weight 150g / 5.3 oz
      Receiver Wire Length 170mm / 6.70"
      Battery Wire Length

      225mm / 8.86"
      Motor Wire Length (Including Connector) 200mm / 7.87"
      Switch Length 21mm / 0.83"
      Switch Width 13.3mm / 0.52"
      Switch Height 16mm / 0.63"
      Motor Bullet Connector Size 4mm / 0.16"
      Wire Specifications 12AWG
      ESC Battery Connector Type 2xEC5

      INCLUDES:

      1 x BLX120 Brushless 4S ESC

      1 x Loop Connector
