PURPOSE BUILT

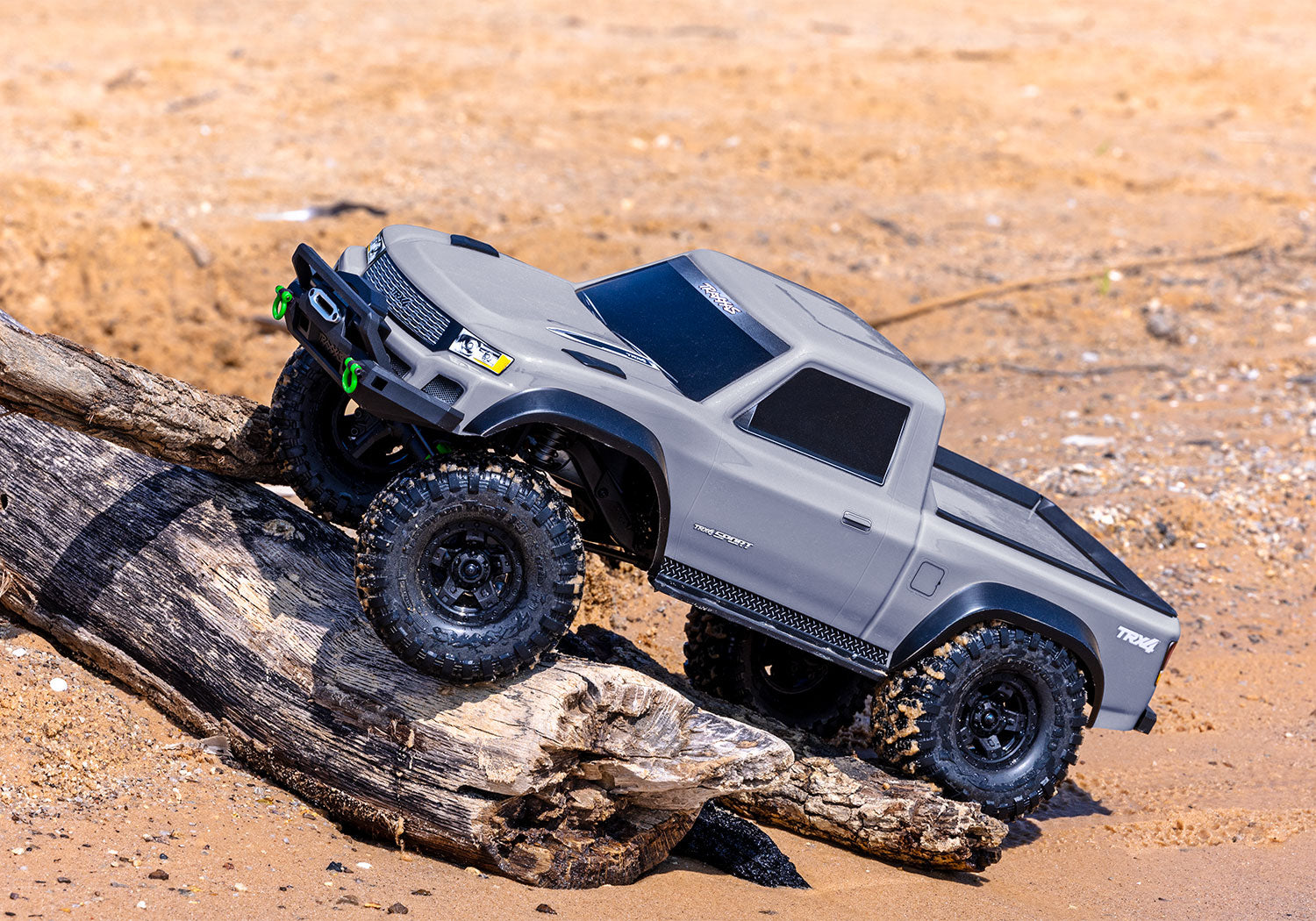

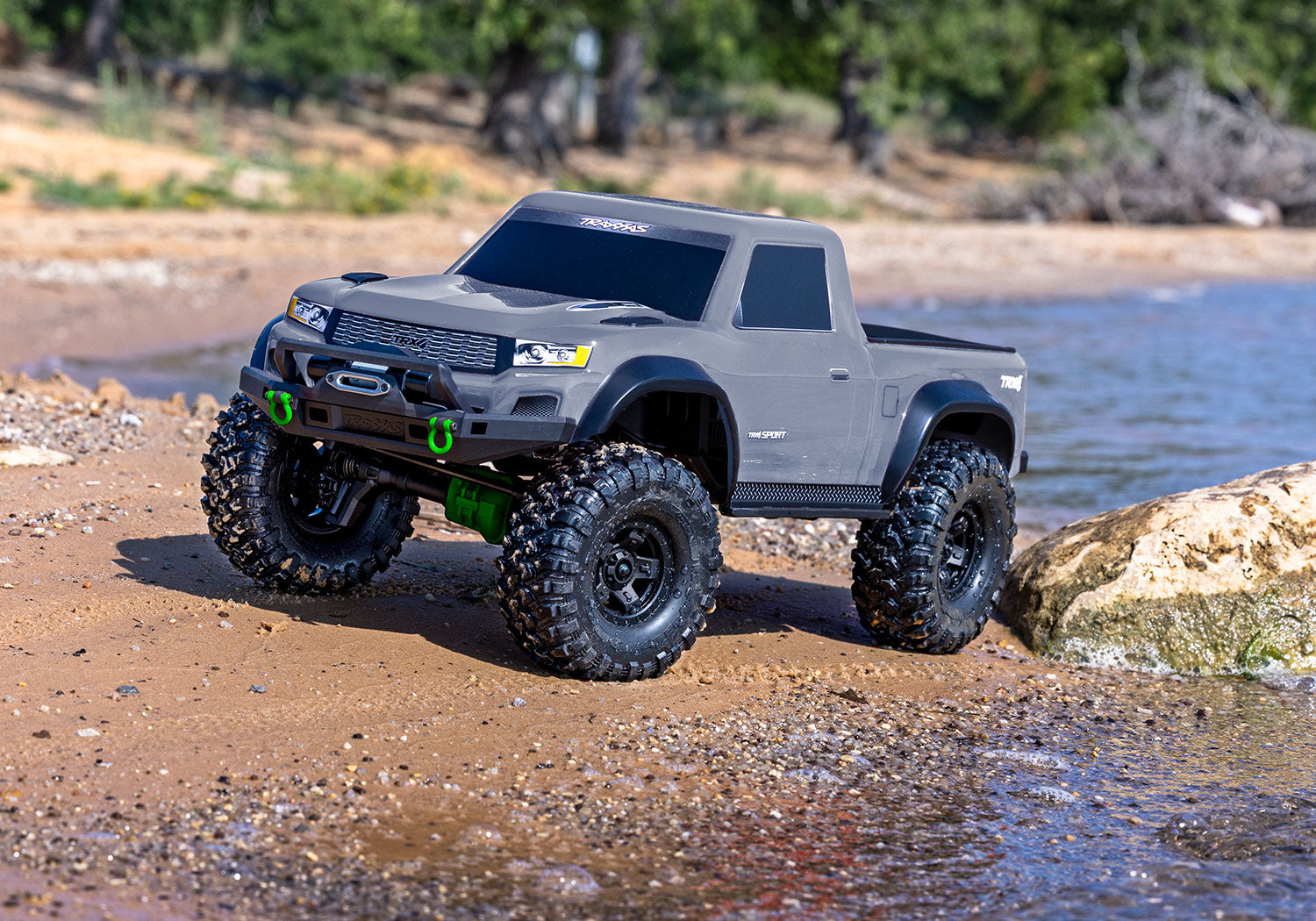

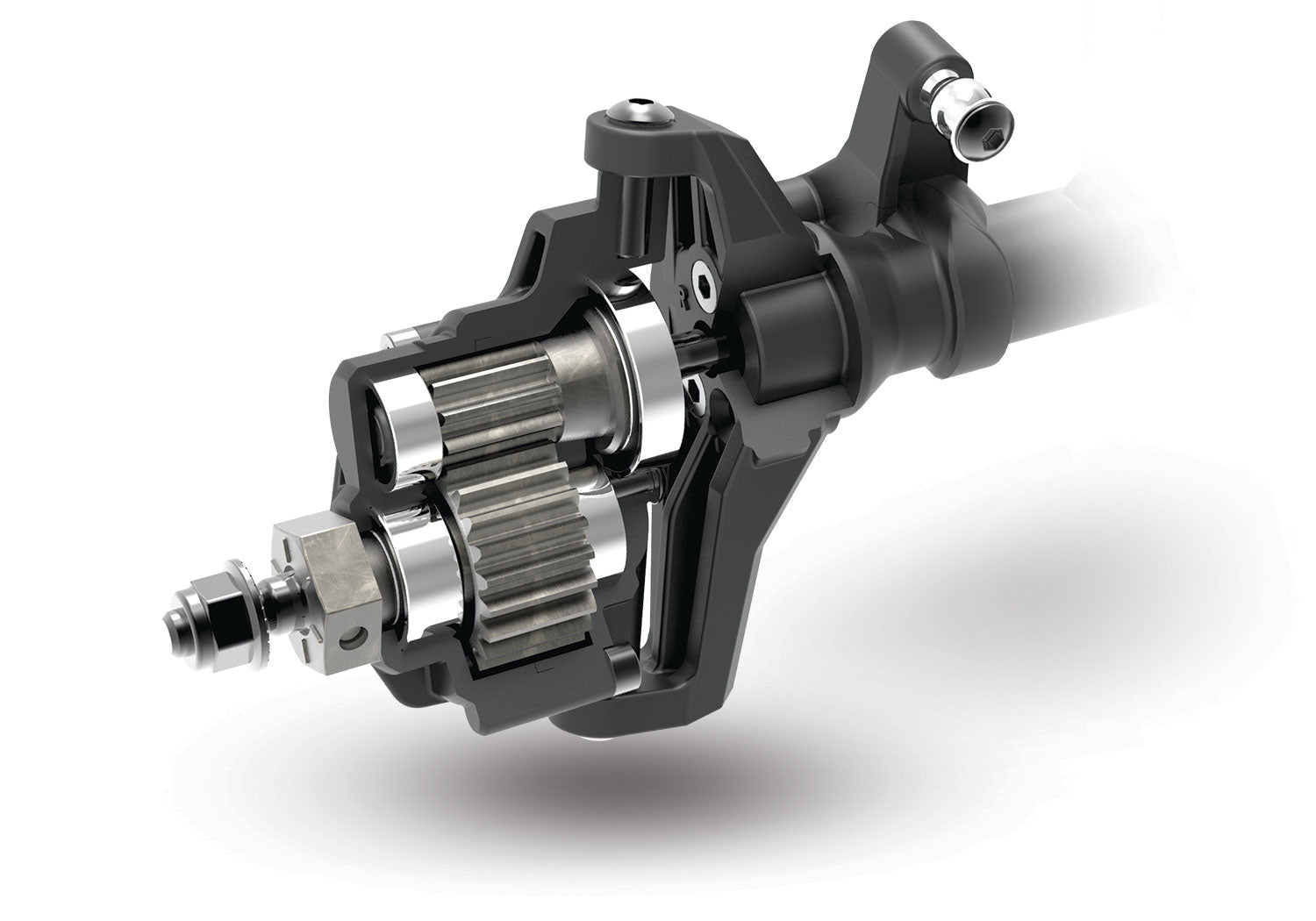

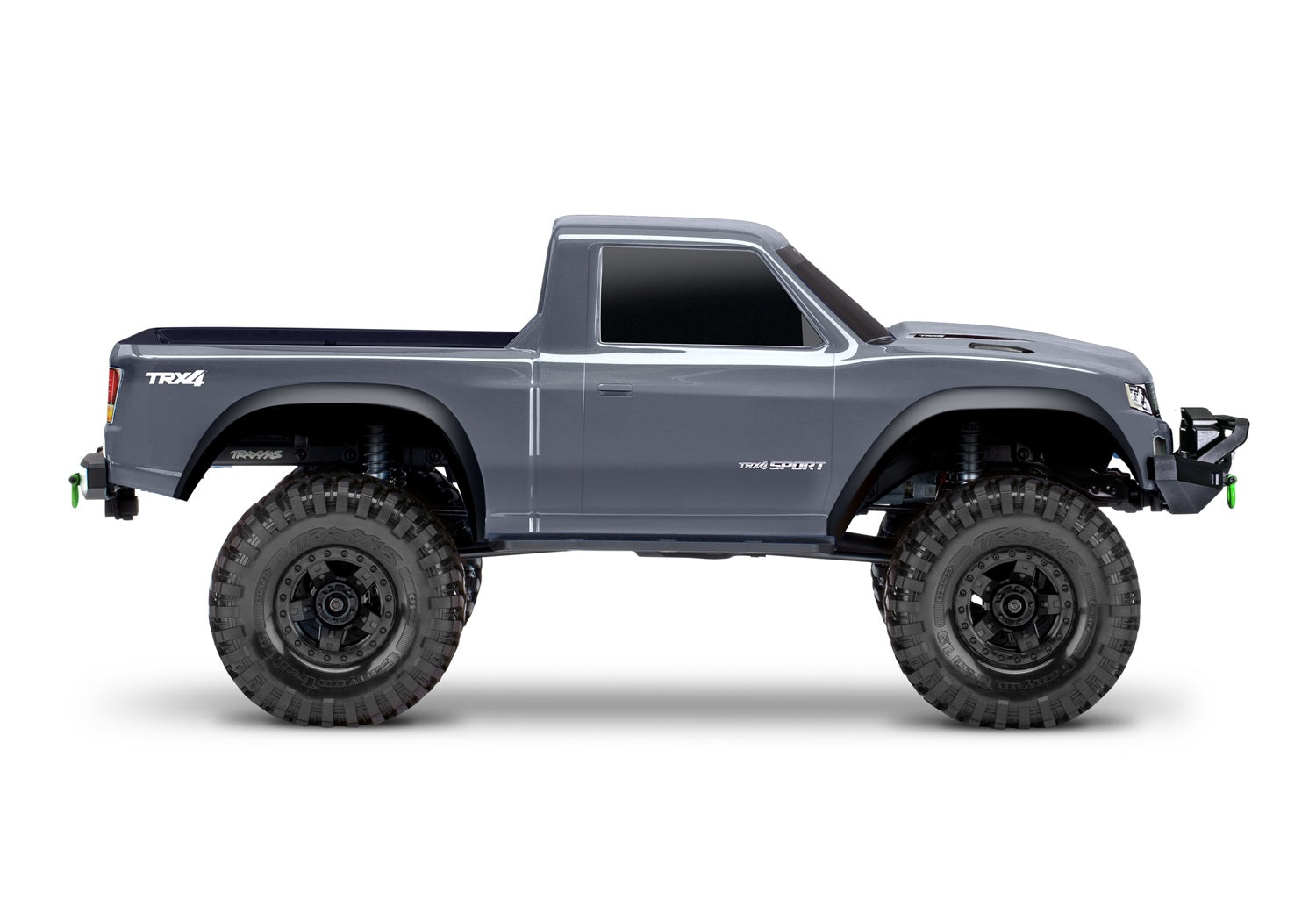

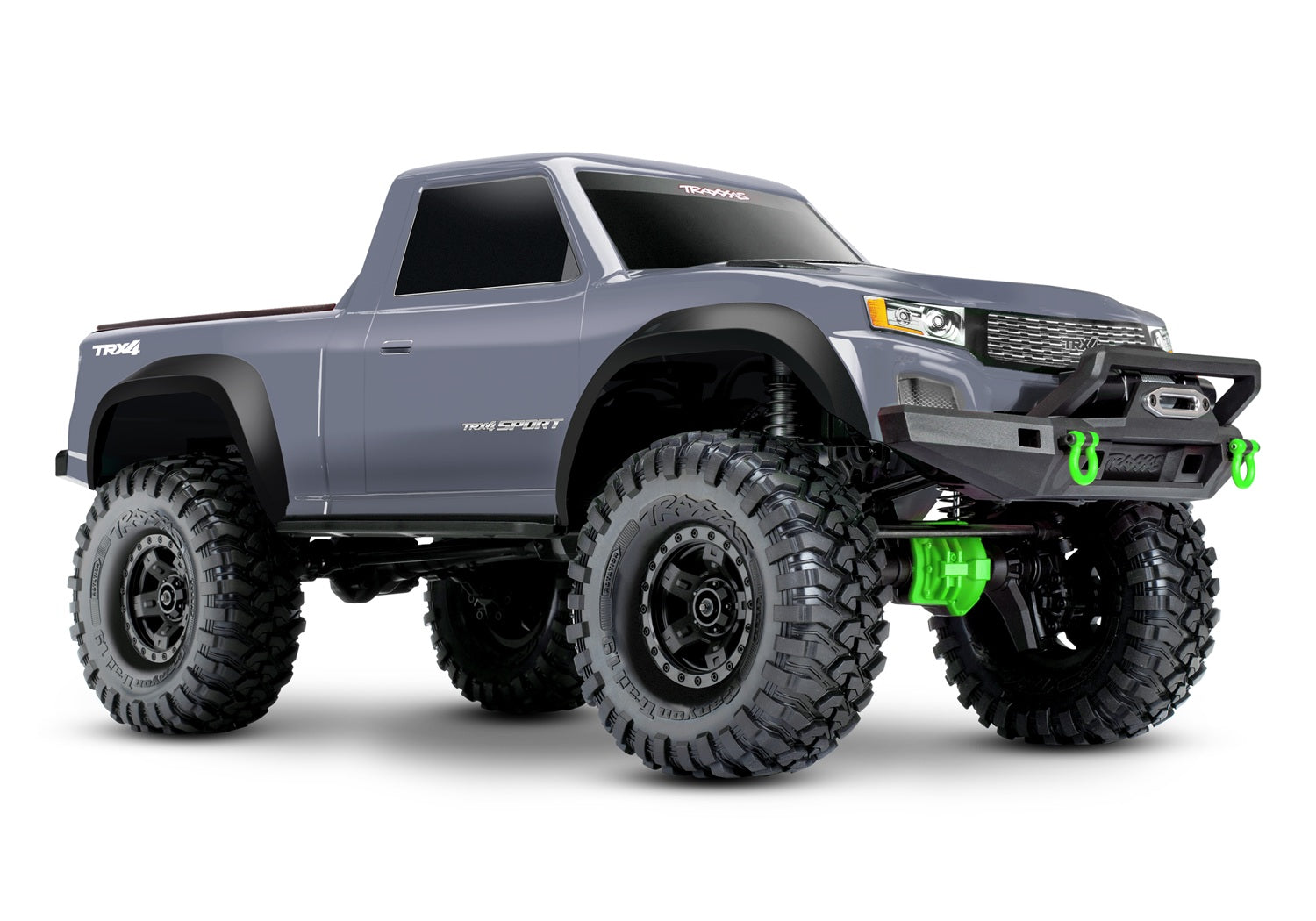

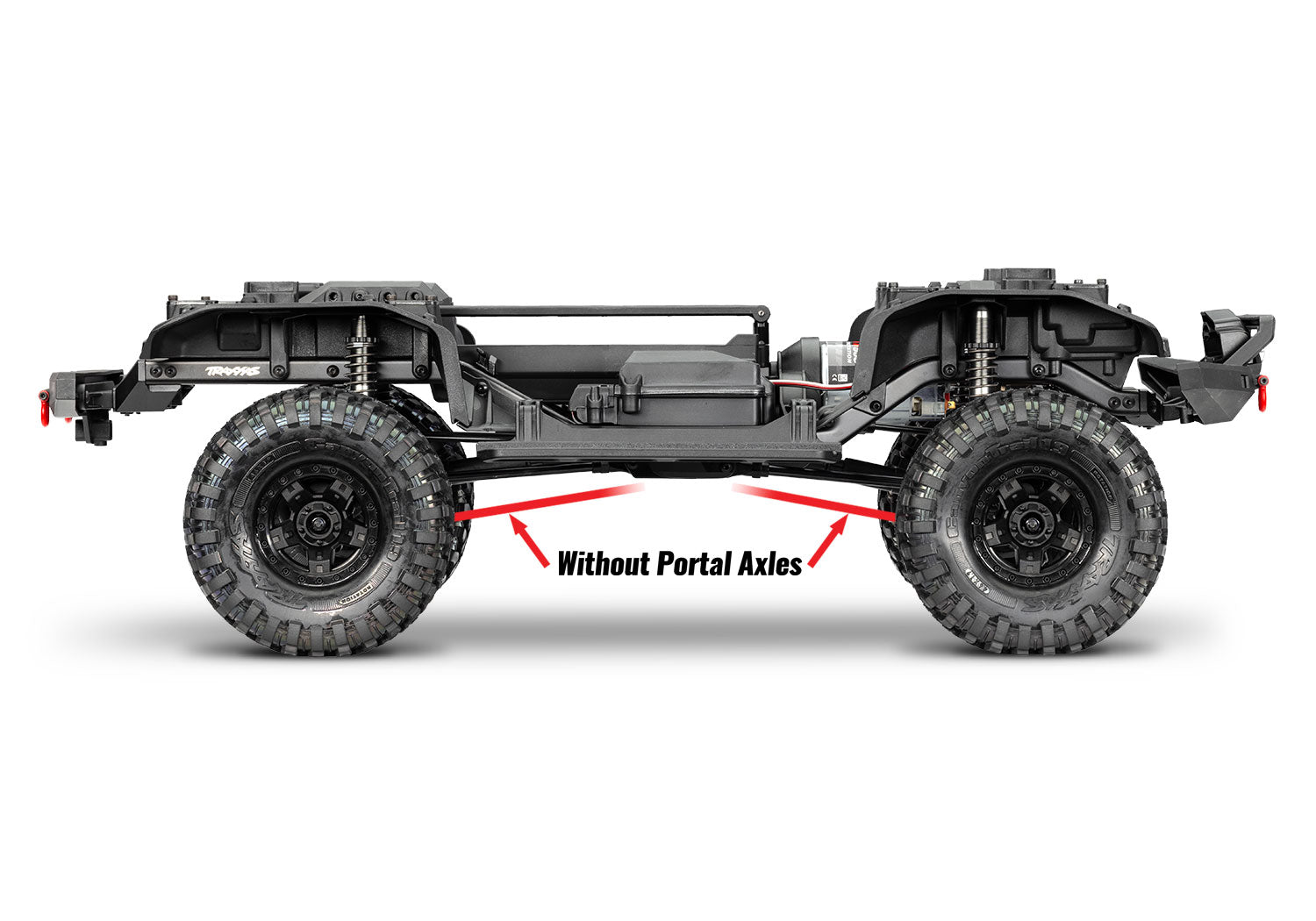

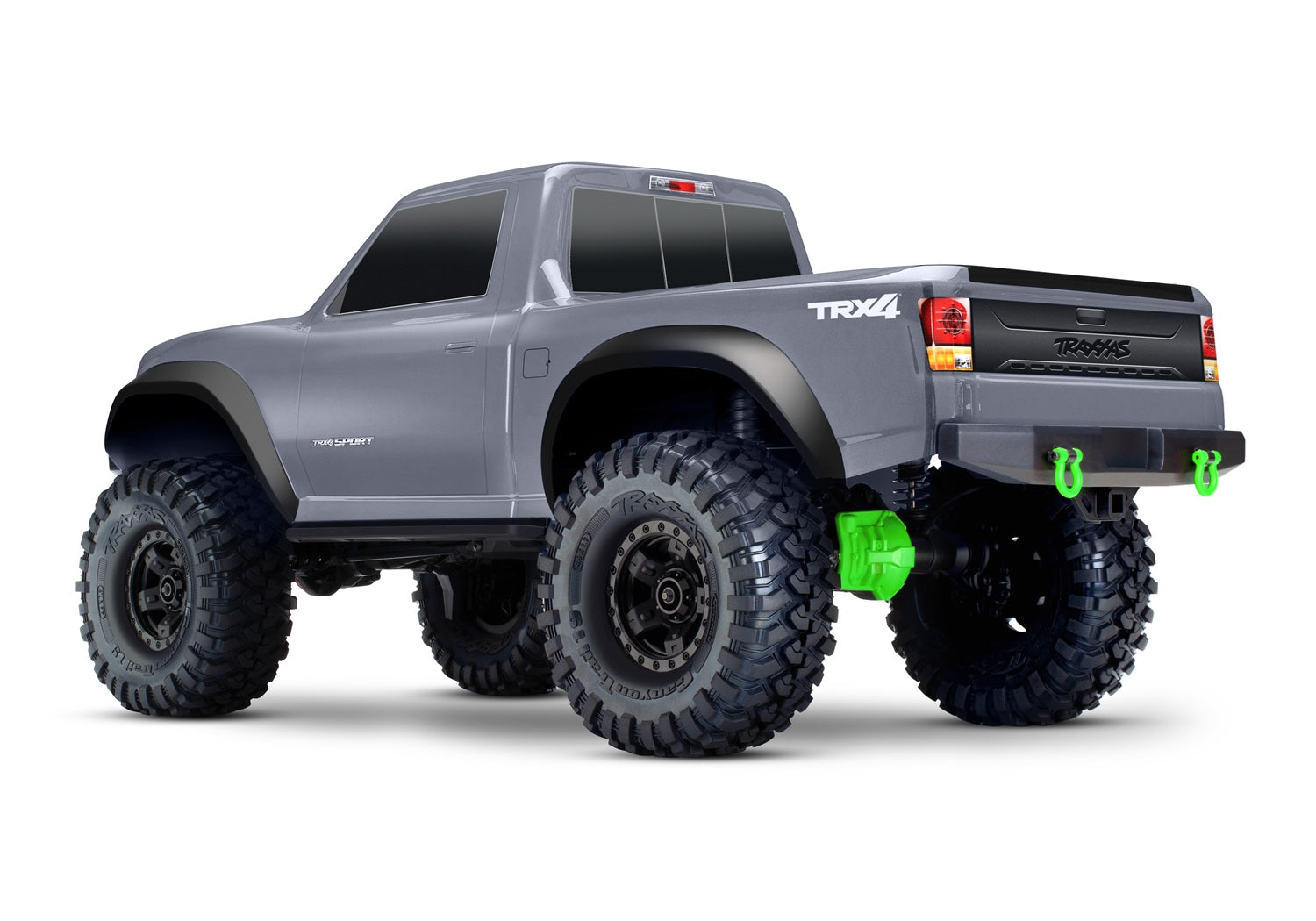

TRX-4^® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.

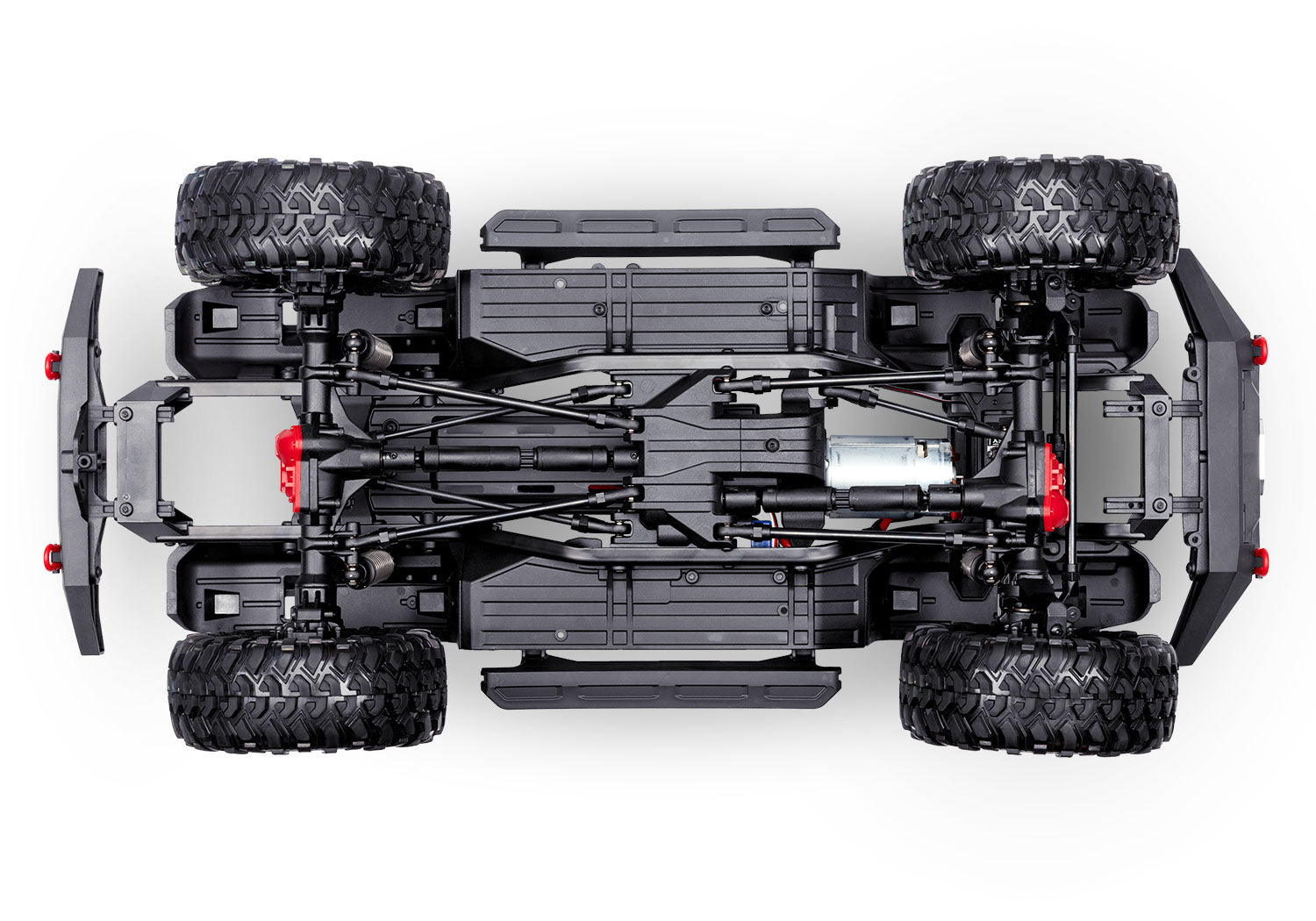

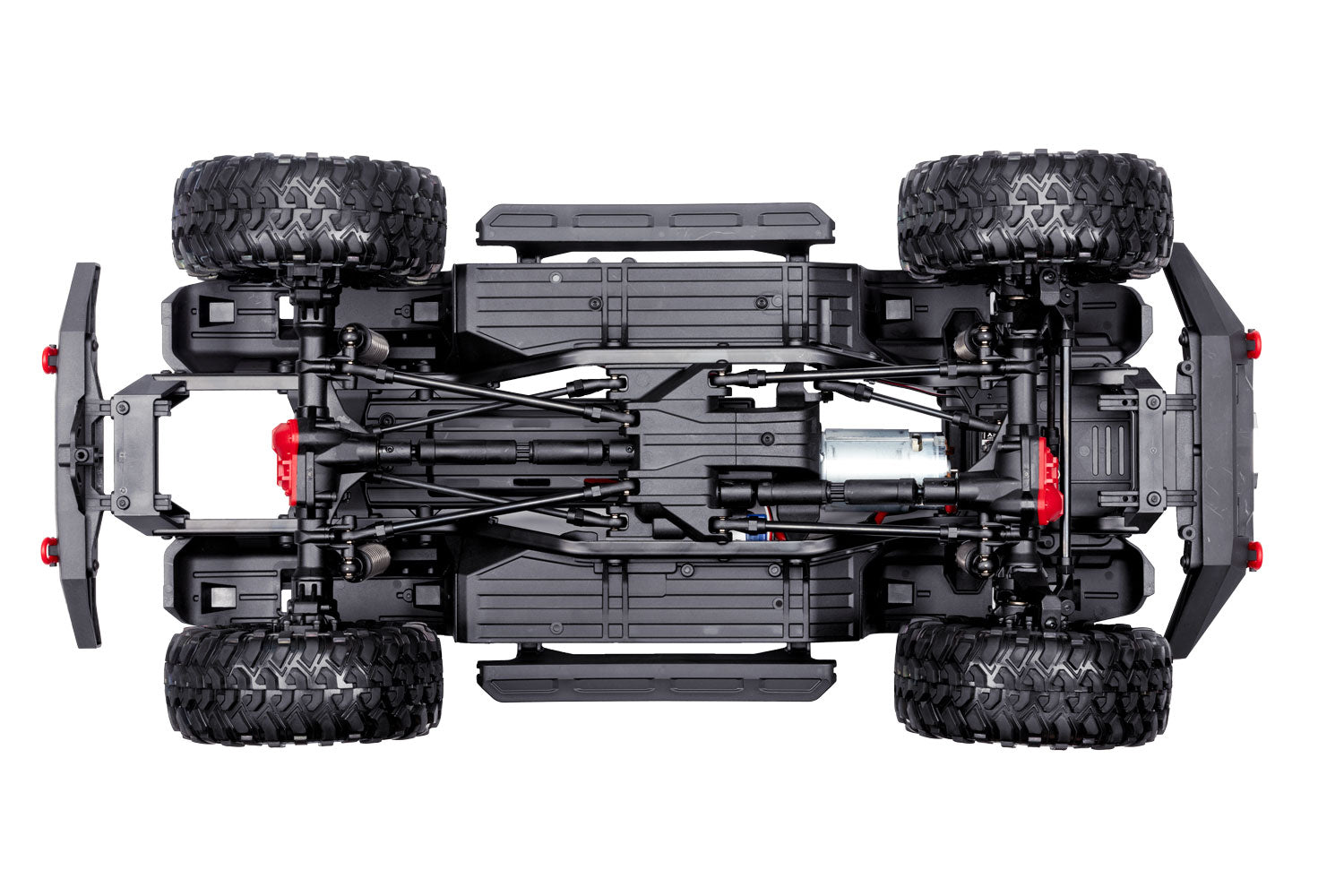

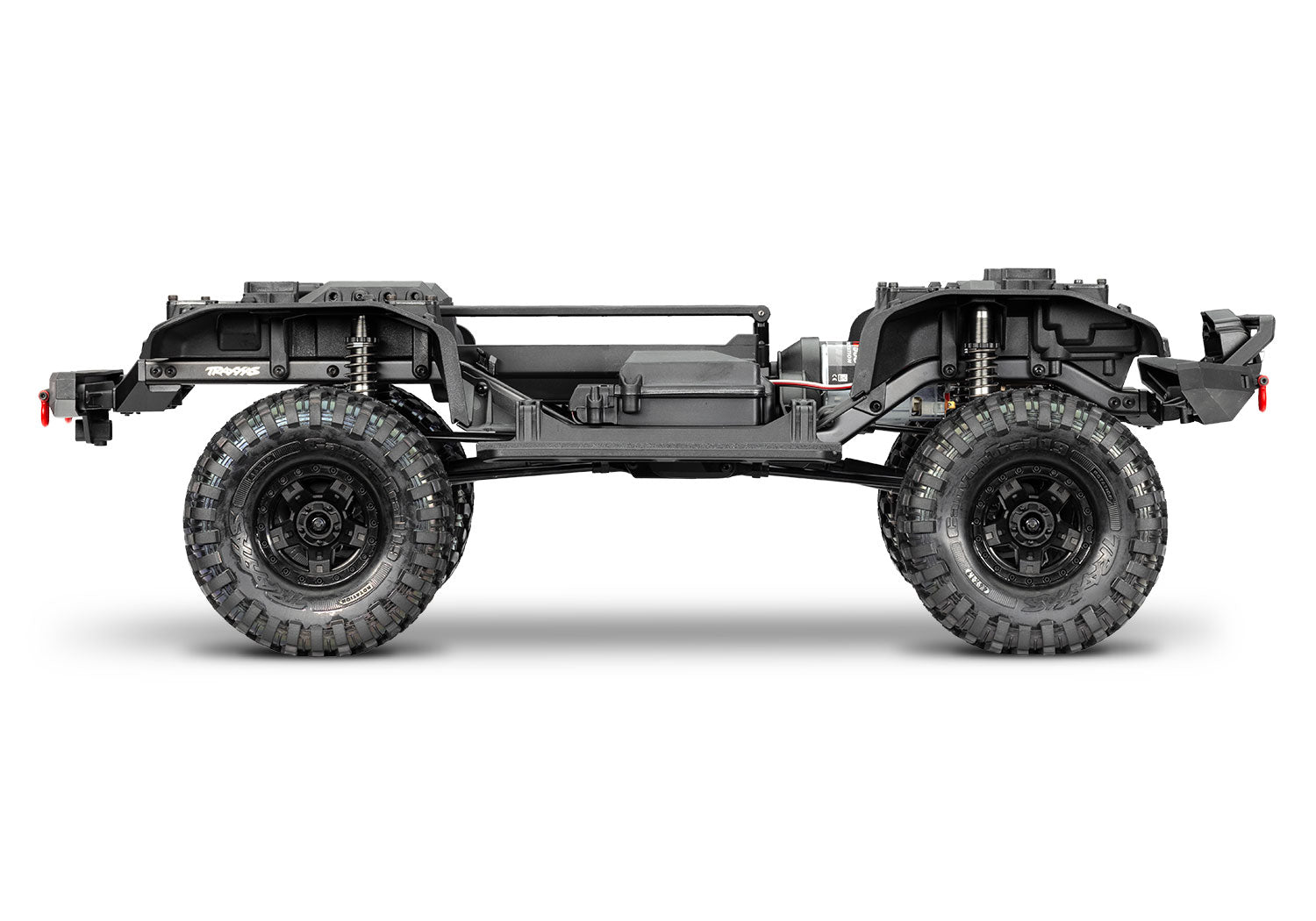

Heavy-Duty Steel Frame Rails

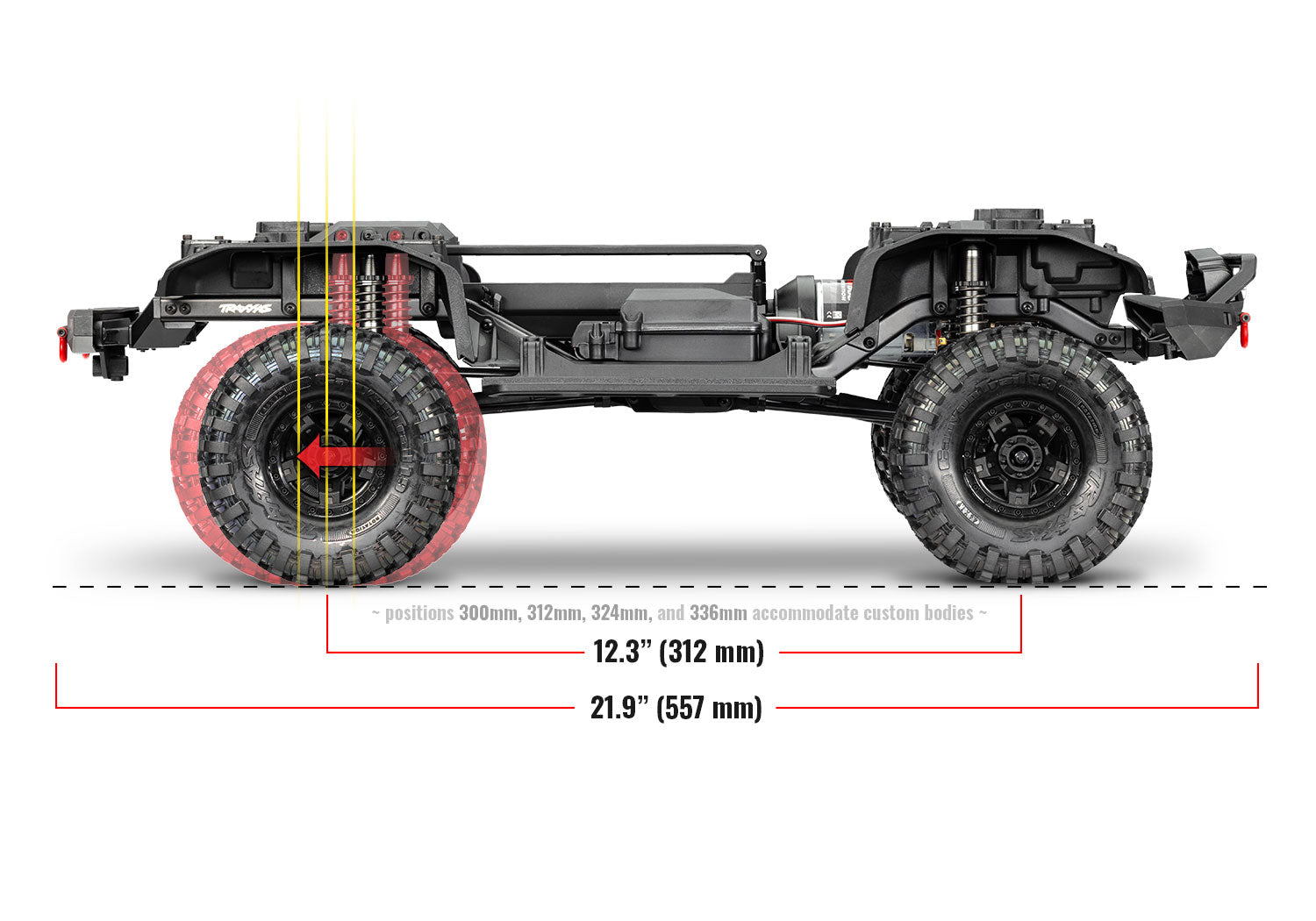

Adjustable Wheelbase

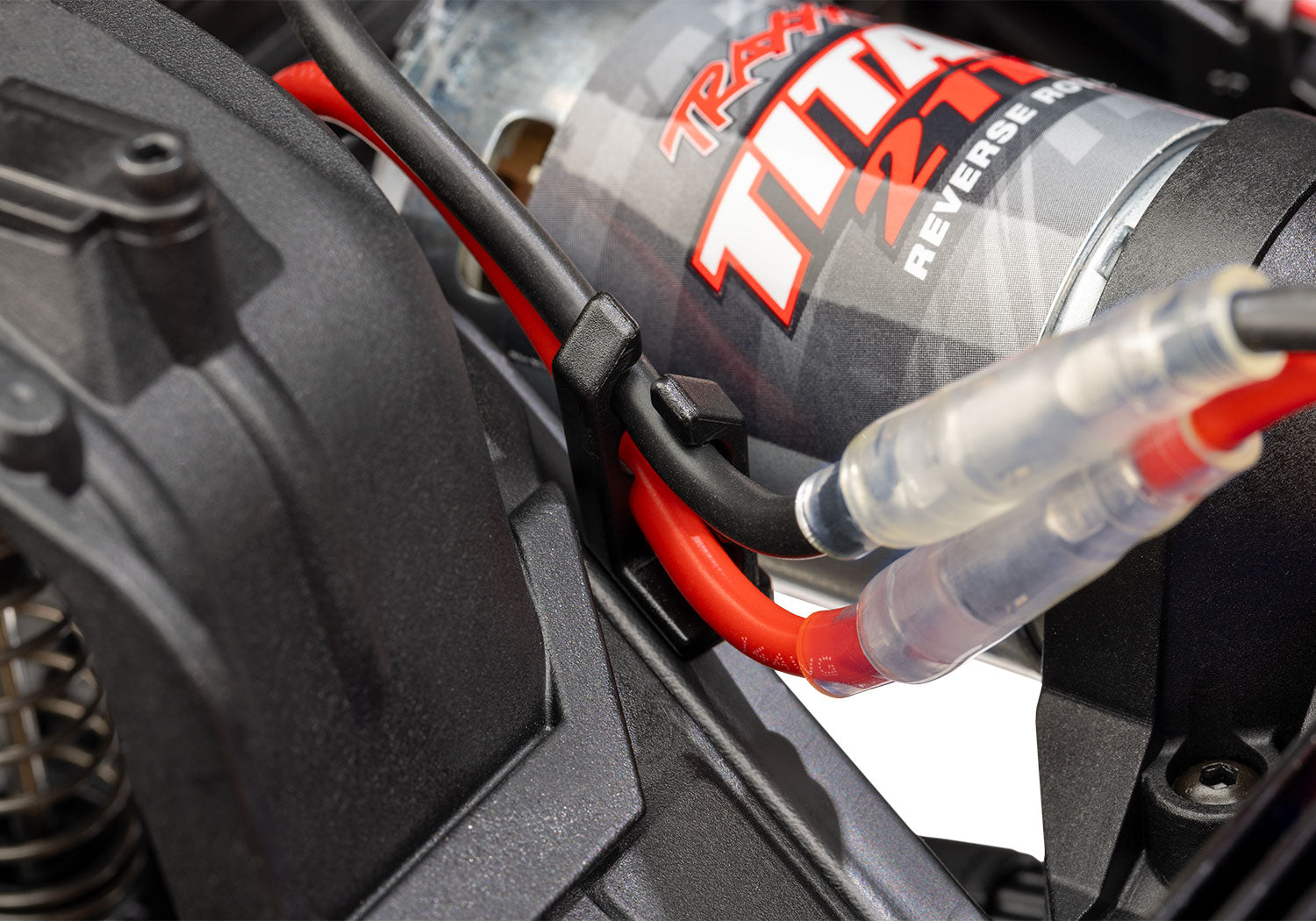

Molded Wire Retainers

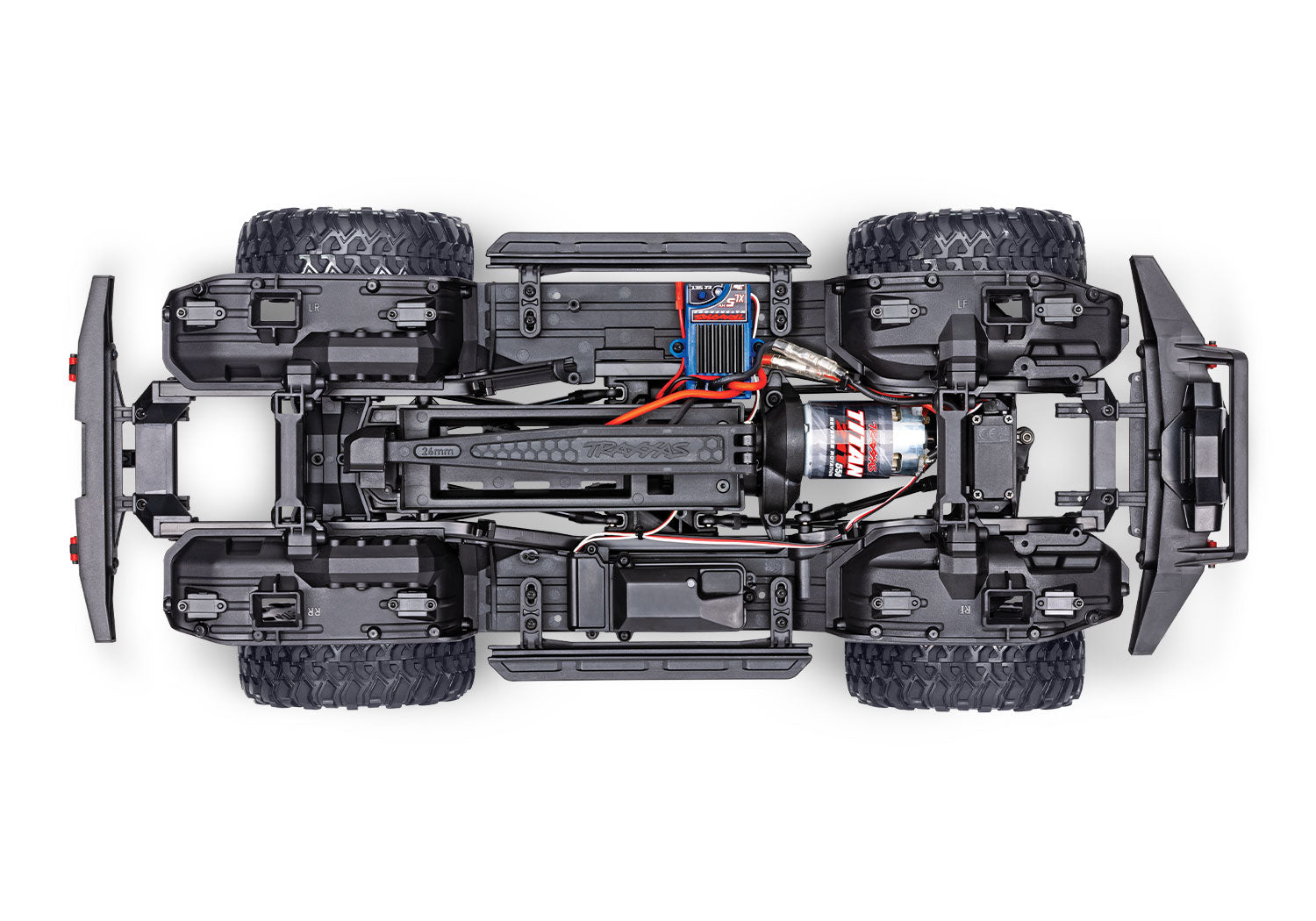

Dual Battery Tray

Floor Pans

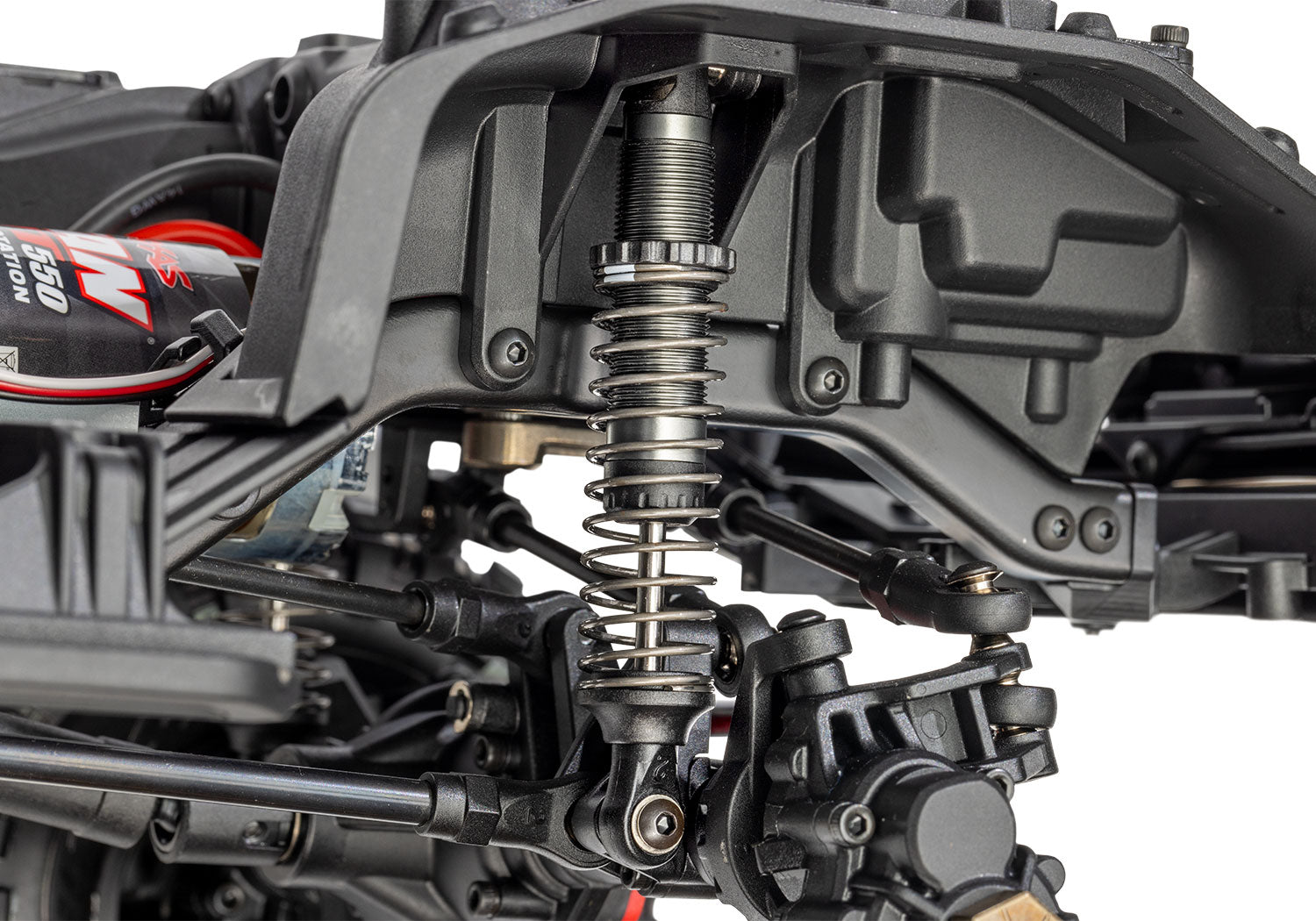

Aluminum Scale Shocks

Heavy-Duty Steel Links

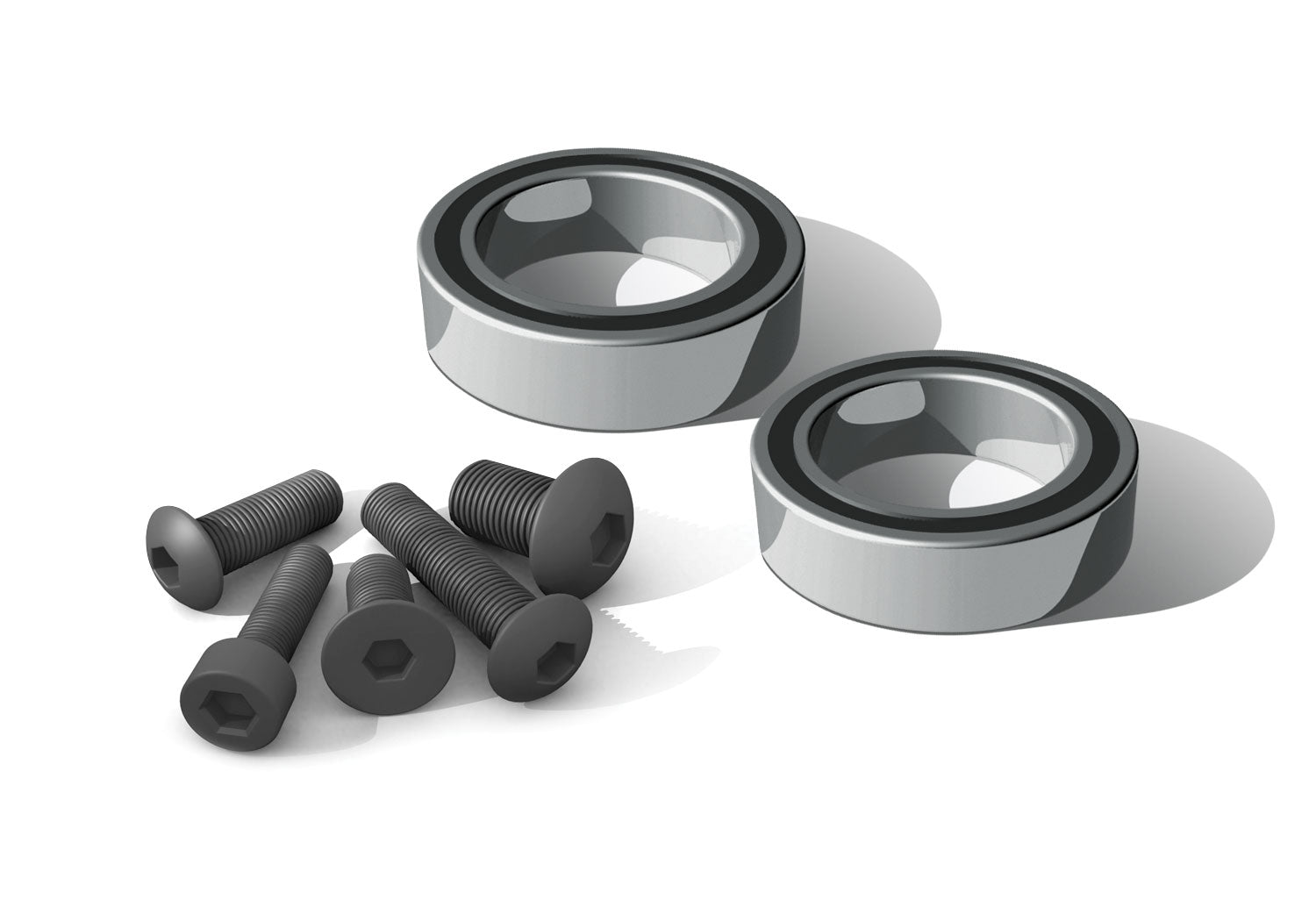

Precision Hex Hardware

Name:	TRX-4 Sport Clipless
Type:	Trail / Crawler
Skill Level:	1
Scale:	1/10
Weight:	5.79 pounds (2.63 kg)
Length:	21.93 inches (557 mm)
Width:	9.78 inches (249 mm)
Front Track:	9.78 inches (249 mm)
Rear Track:	9.78 inches (249 mm)

Height:	9.47 inches (241 mm)
Wheelbase:	12.28 inches (312 mm)

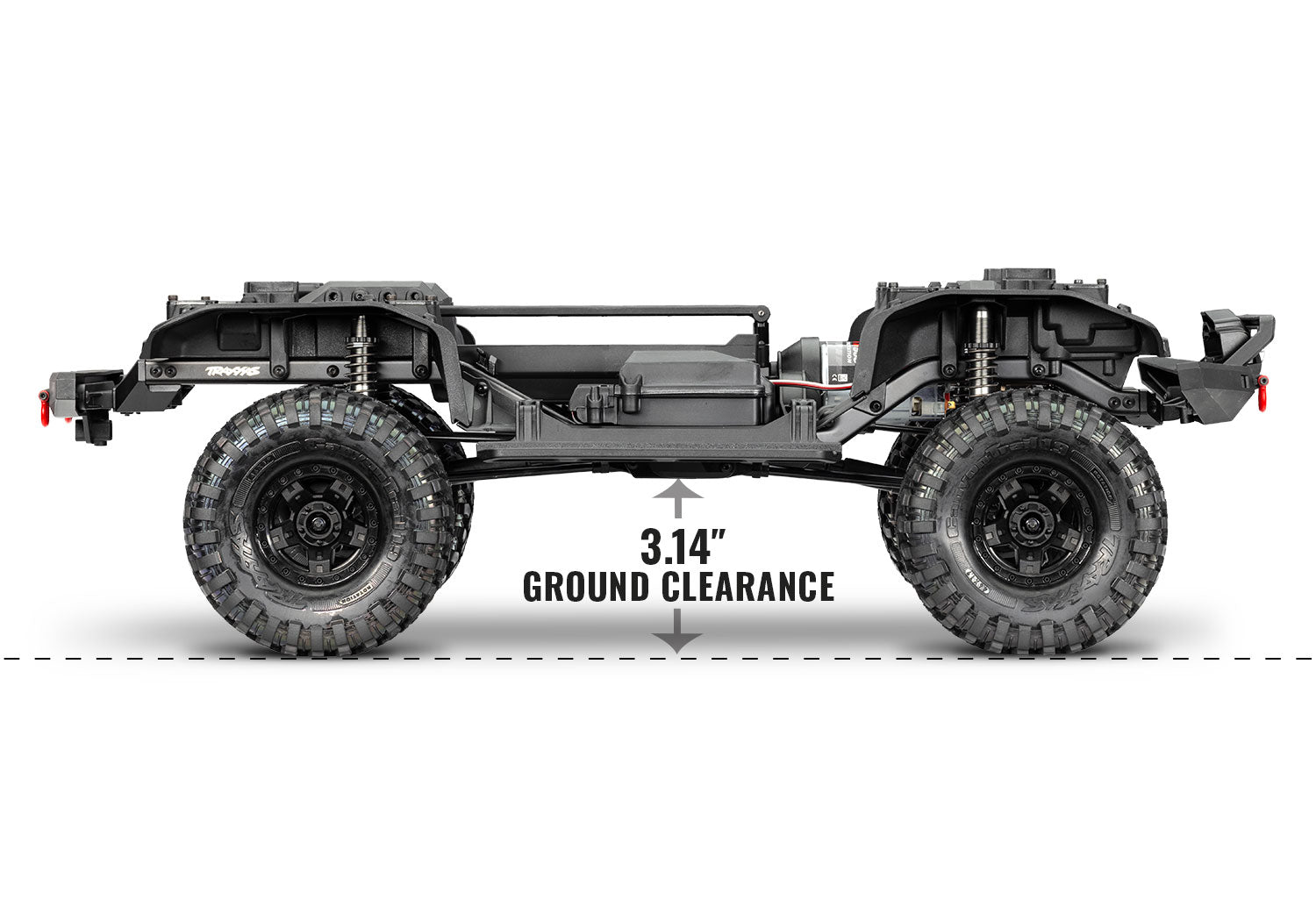

Center Ground Clearance:	3.14 inches (80 mm)
Driveline:	Shaft-driven 4WD

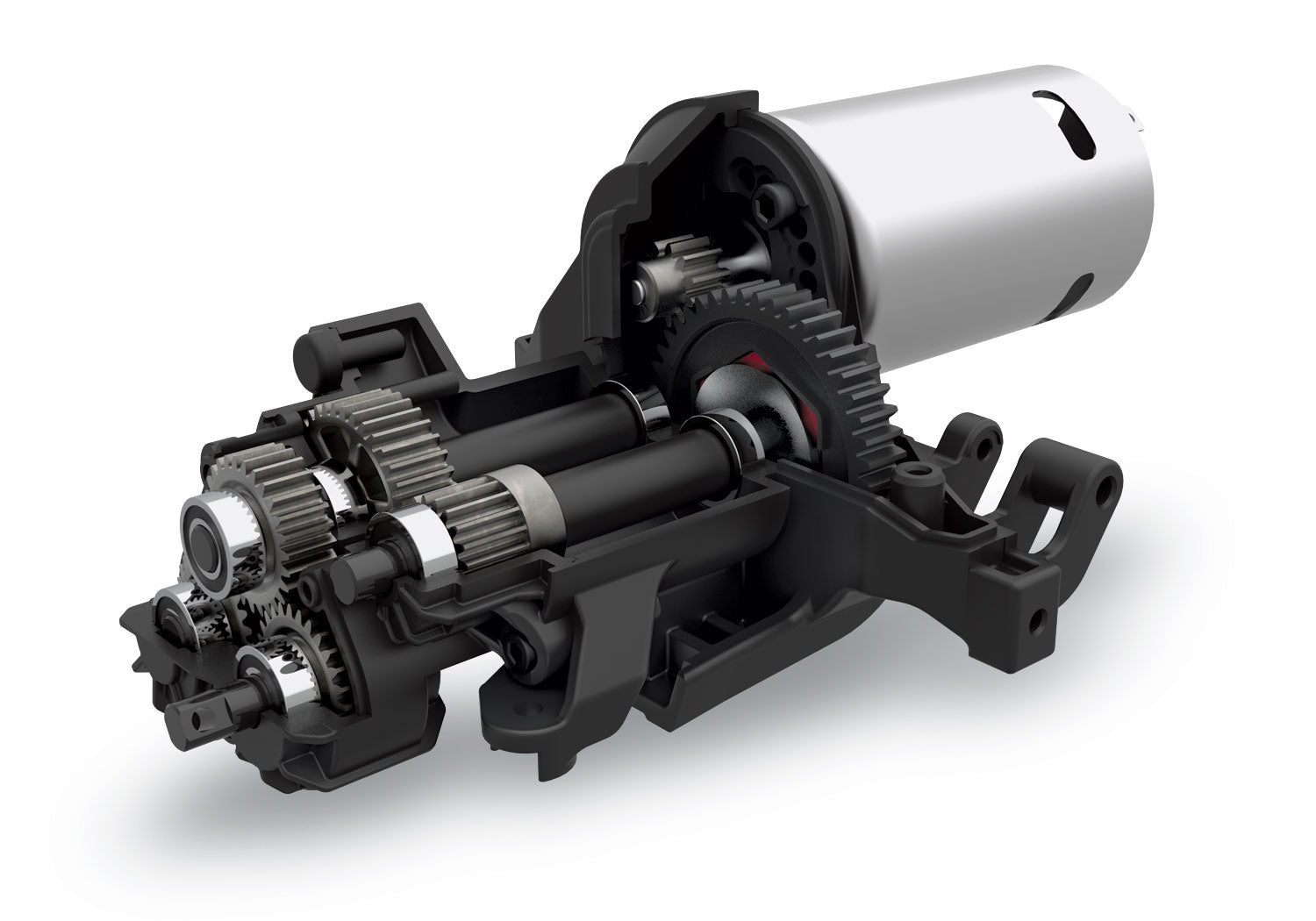

Transmission:	Single speed

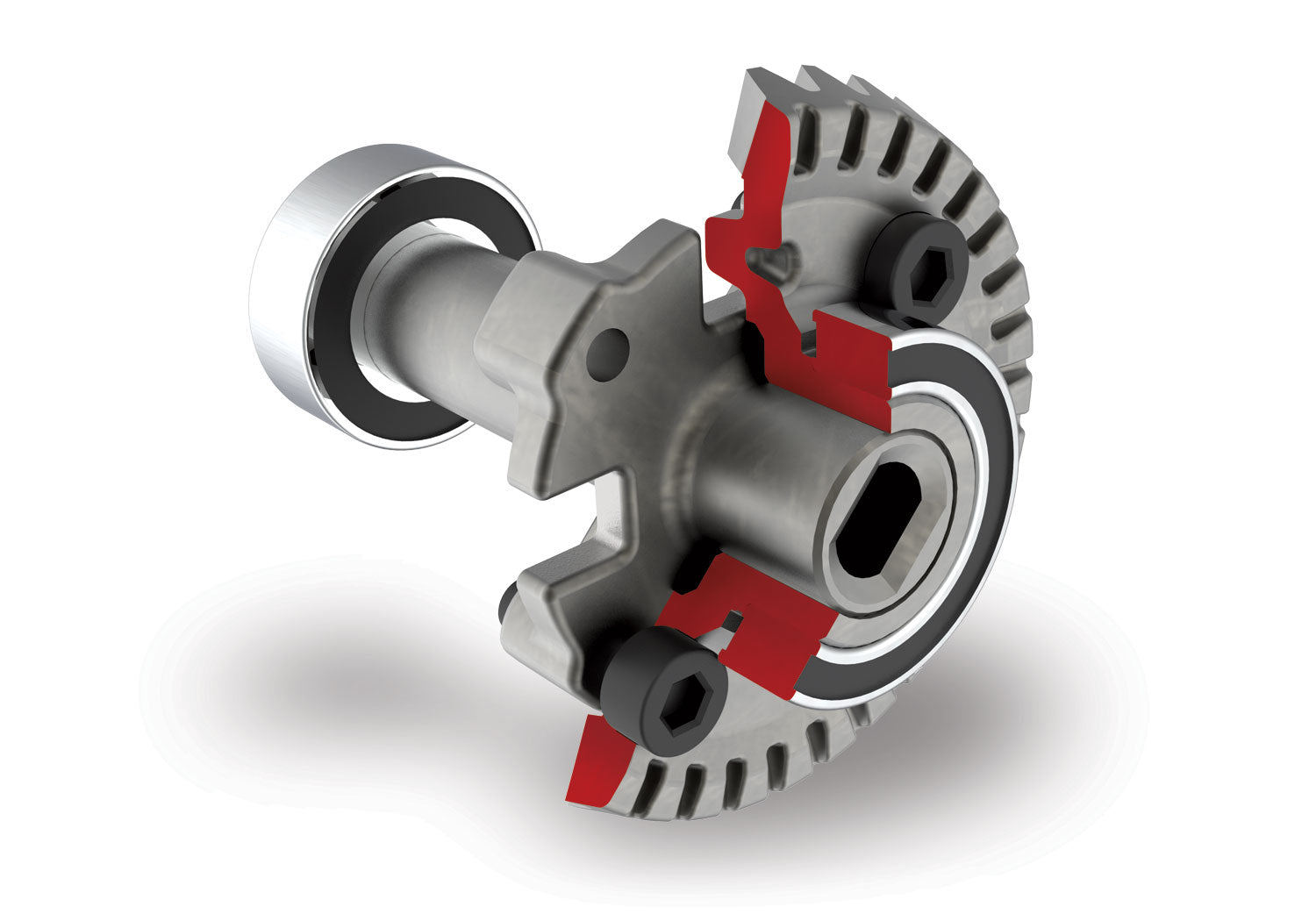

Differential Type:	Spool (no differential)
Gear Pitch:	32 pitch
Steering Servo:	2075X metal gear, digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

MOTOR SPECS

Name:	Titan® 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Weight:	8.47 ounces (240 g)
Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:	1.53 inches (39 mm)
Shaft Size:	3 mm
Connector Type:	Bullet

ESC SPECS

Name:	XL-5™ HV
ESC Type:	Brushed
Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight:	2.60 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
Power Wire:	14 gauge



MODEL 82024-4: TRX-4 Sport: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Drive^®, with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, and painted body.

What’s In The Box:

• TRX-4, Ready-To-Drive model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries

  TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2S–3S) batteries.

• Charger

  Traxxas EZ-Peak^® Live charger is recommended for easy and fast charging performance (model 2971).

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
