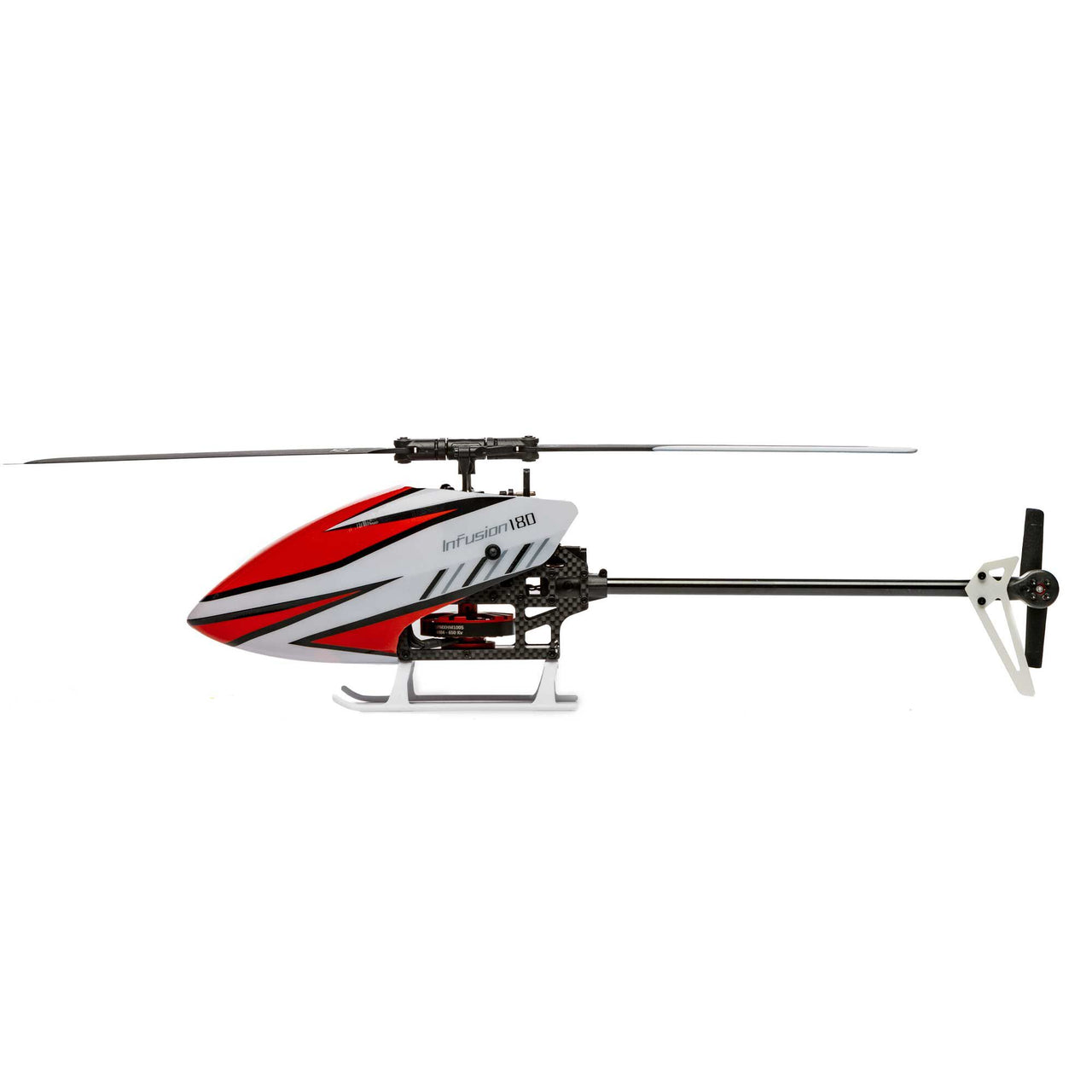

The Blade® InFusion 180 is a new design engineered for next-level durability and performance. Featuring an oversized direct-drive power system, no gears are driving the main rotor, allowing for instant power and lower parts count.

Overview

Features

SAFE^® Technology: Self-leveling modes make learning to fly a collective pitch helicopter easier
Progressive Flight Modes: This allows you to grow with this heli and build your collective pitch skills
Panic Recovery: Recover the heli to a level attitude with the flip of a switch
Smart Technology built-in - Provides valuable telemetry feedback to Smart capable Spektrum transmitters

Durable: An innovative fusion of carbon fiber, ABS plastic, and aluminum components delivers outstanding rigidity and durability
Metal Gear Digital Swashplate Servos: Durable, high-speed responsive servos
Direct Drive Power System: Brushless motor delivers instant power in a simplistic design
High Visibility: Vivid canopy and bright main blades and tail make it easy to maintain orientation

The No Compromise, High-Performance Heli

The Blade^® InFusion 180 is a new design from the Blade team engineered for next-level durability and performance. Featuring an oversized direct-drive power system, no gears are driving the main rotor, allowing for instant power and lower parts count. For those looking for high performance in a small size, the InFusion 180 packs a punch perfect for thrilling backyard aerobatics. The InFusion 180 is easy to see while tearing up the sky with a one-piece canopy, bright white tail fin, and main landing gear. Featuring the latest in Spektrum^™ Technology, it is equipped with the micro AR6251MHX Flight Controller that is expertly tuned out of the box yet remains adjustable for pilots to fine-tune the aircraft to their flying style. Also, a Spektrum Smart Avian^™ ESC offers precise head speed control for a high-performance flight that doesn't lag. Additionally, an innovative fusion of carbon fiber, ABS plastic, and aluminum components delivers outstanding rigidity and durability. With BNF^® Basic convenience, all you have to do is add a 3S 600mAh battery, bind your 6+ channel Spektrum DSMX^® transmitter, and take it to the skies.

SAFE^® Technology

The Blade InFusion 180 helicopter features exclusive SAFE^® (Sensor Assisted Flight Envelope^®) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the heli to a level attitude.

Spektrum^™ Avian^™ Smart Lite 20-amp Dual ESC included

The Spektrum^™ Avian^™ Smart Lite 20-amp Dual ESC transmits flight pack voltage and ESC data straight to your Spektrum transmitter. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature, and RPM. The 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked-in and active throttle response.

Spektrum^™ AR6251MHX Flybarless Controller and Receiver

The heli features the new ground-breaking Spektrum^™ AR6251HX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, and 6-axis M.E.M.S. inertial sensor, that provides consistent low-latency operation.

Direct Drive Power System

The InFusion 180 features a direct drive main motor power system allowing for instant power with fewer parts and maintenance when compared to a gear-driven main rotor. The motor shaft itself is made of hardened steel and is nearly indestructible.

High-end Metal Gear Servos

The InFusion 180 features best-in-class micro servos providing super-fast speed and extremely accurate position holding. Each features a fully metal gear drive train for increased durability and precision.

Optimized Design for low weight and high durability

The hybrid mainframe takes rigidity to another level for a rock-solid flight experience. The carbon fiber main rotor blades feature an improved aerodynamic design with increases in efficiency and power. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case improving vibration damping and performance.

Specs

Specifications

Approximate Assembly Time: Less Than One Hour
Battery: Sold Separately
Canopy/Body Material: Plastic
Channels: 6
Charger: Sold Separately
Completion Level: Bind-N-Fly
Main Blade Material: Plastic
Main Frame Material: Carbon Fiber
Main Motor Type: Brushless
Main Rotor Blade Length: 7.08" (180 mm)
Main Rotor Diameter: 15.74" (400 mm)
Main Rotor Head Type: Collective Pitch Flybarless
Motor Size: 4004 - 65KV
Power Type: Electric
Product Height: 4.64" (118 mm)
Product Length: 15.51" (394 mm)
Product Weight: 280g
Product Width: 2.55" (65 mm)
Receiver: Included
Servos: Included
Skill Level: Level 2
Speed Control: Included
Swashplate Type: 120 Degree CCPM
Tail Blade Material: Plastic
Tail Drive: Direct Drive
Tail Motor Type: Brushless Outrunner
Tail Rotor Diameter: 2.95" (75 mm)
Technology: SAFE
