Hobbywing Quicrun Brushed Motor 540/555
$25.99 CAD
$25.99 CAD
Couldn't load pickup availability
Free shipping over 100$* Canada ⚡️
Free shipping over 200$* USA⚡️
*Except Oversize*
Real time inventory ⏱
Don't forget to click notify me for an out of stock product.
*Waranty only applicable at Hobbywing directly* *Garantie Applicable chez Hobbywing seulement*
Specialized Carbon Brushed for extended life and Zero-Cogging Torque Design

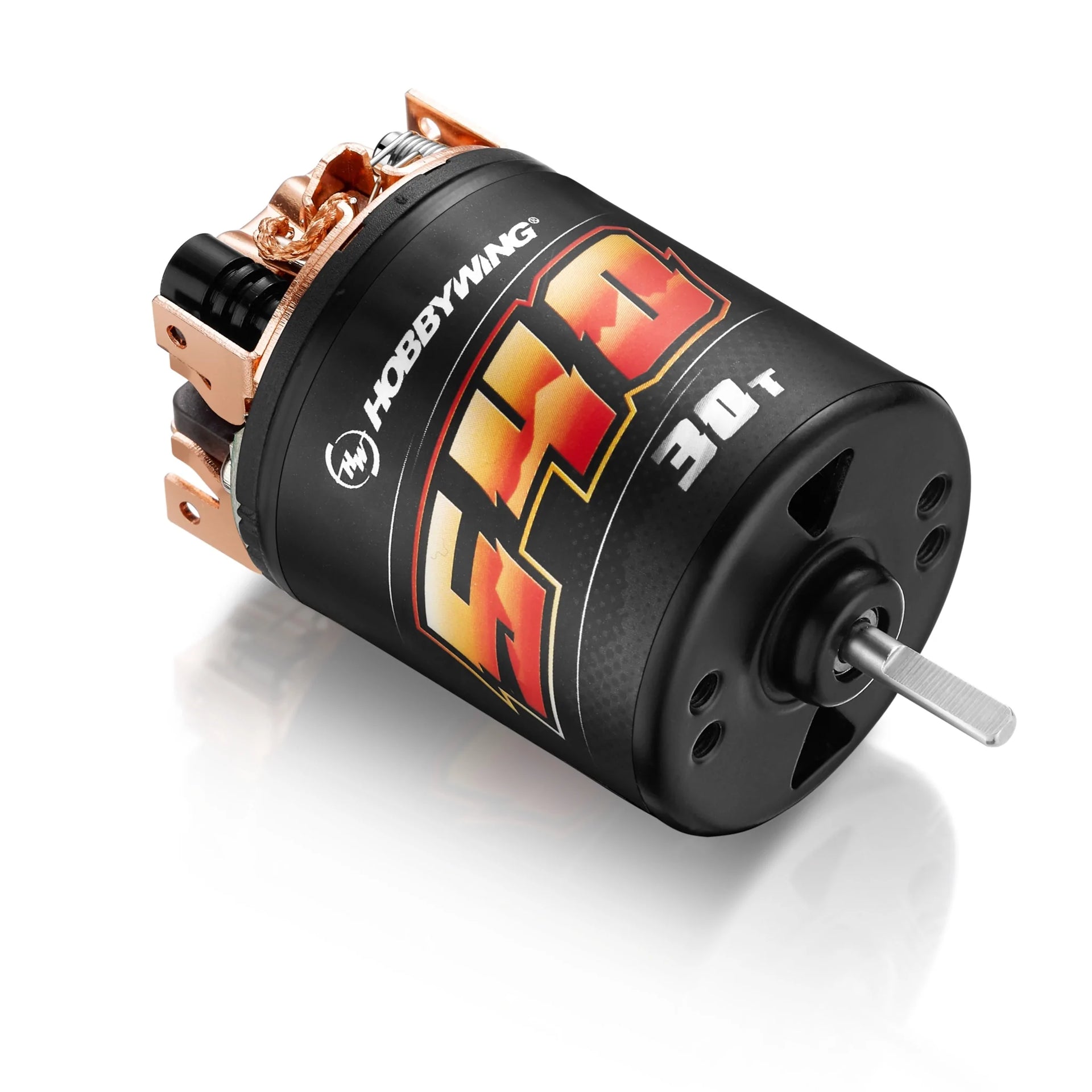

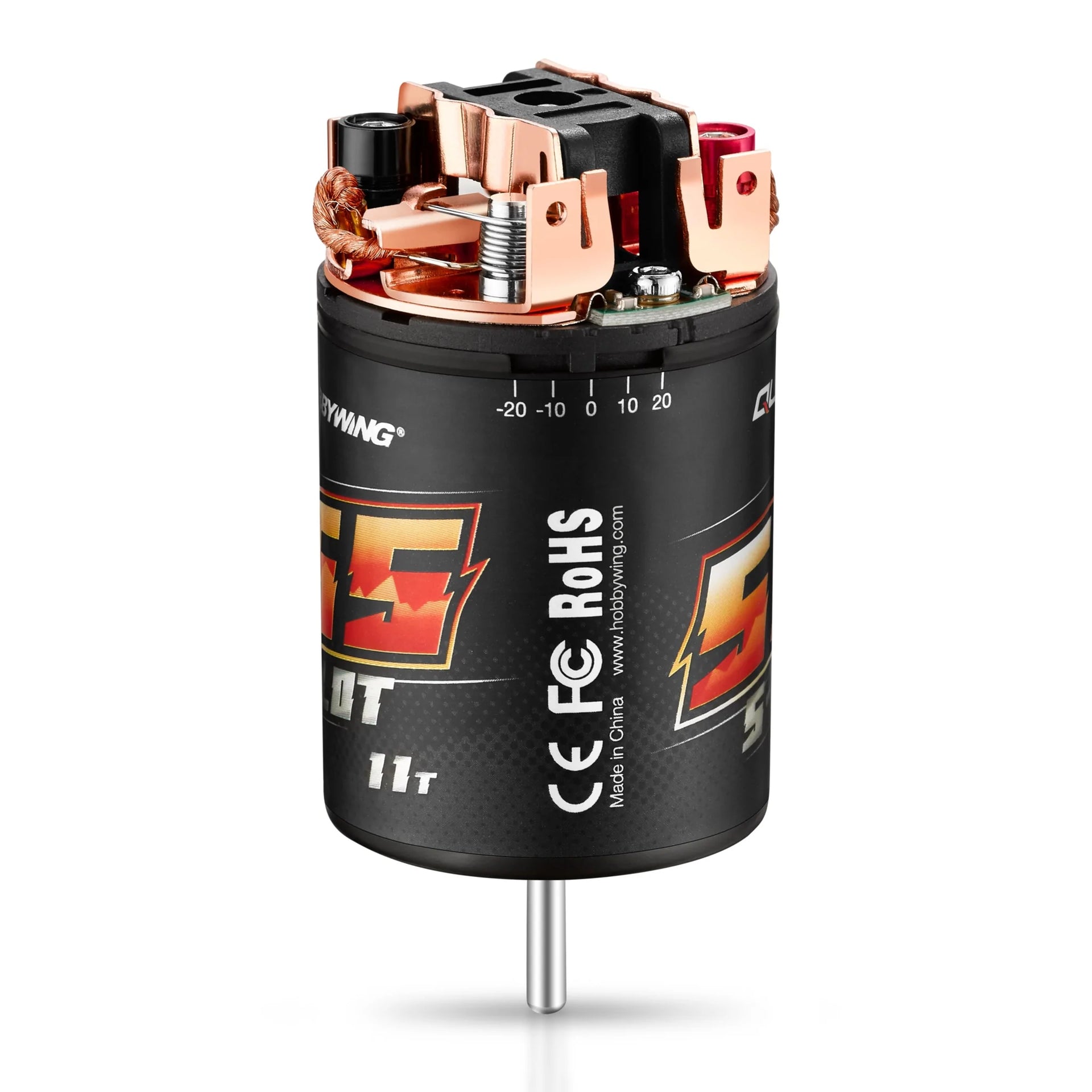

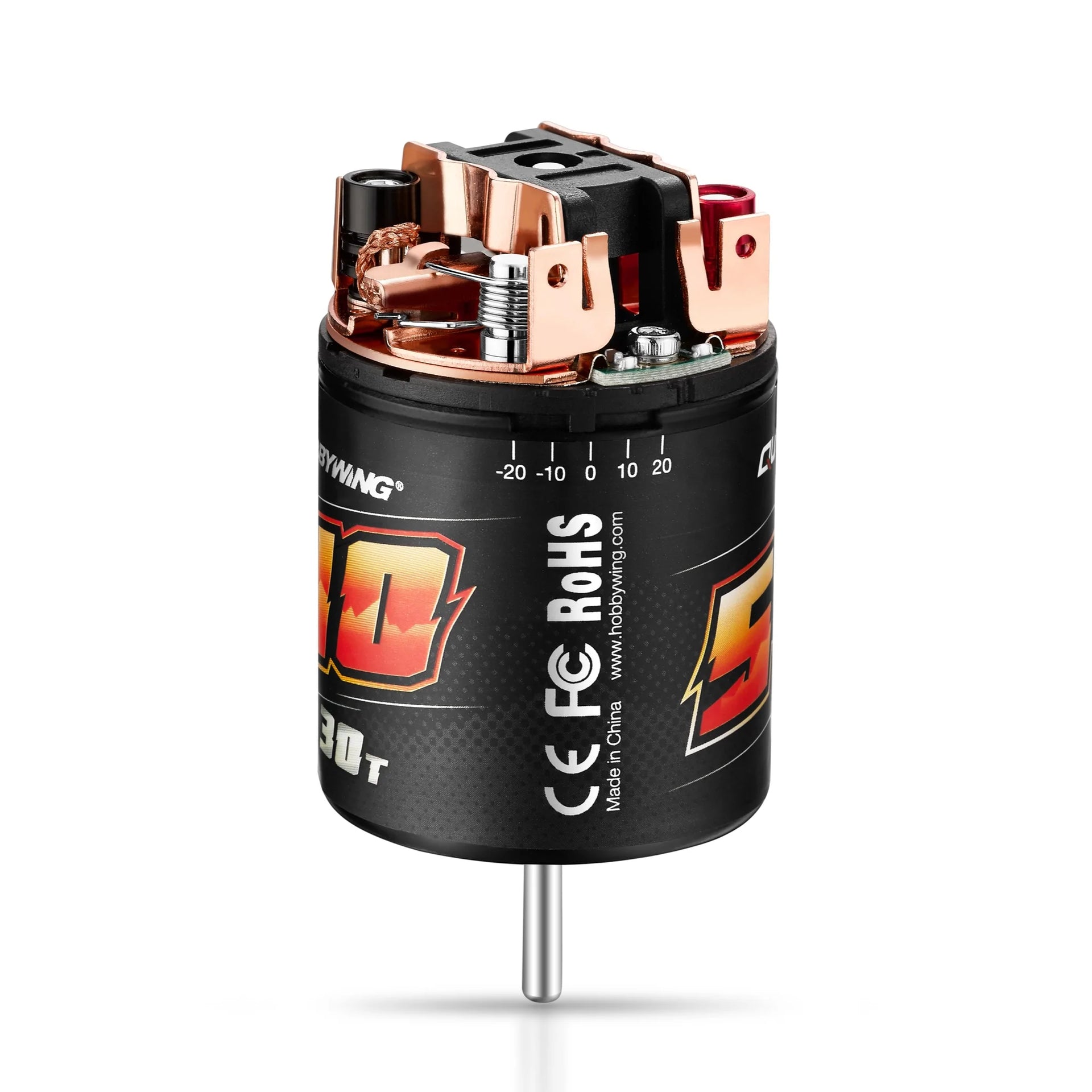

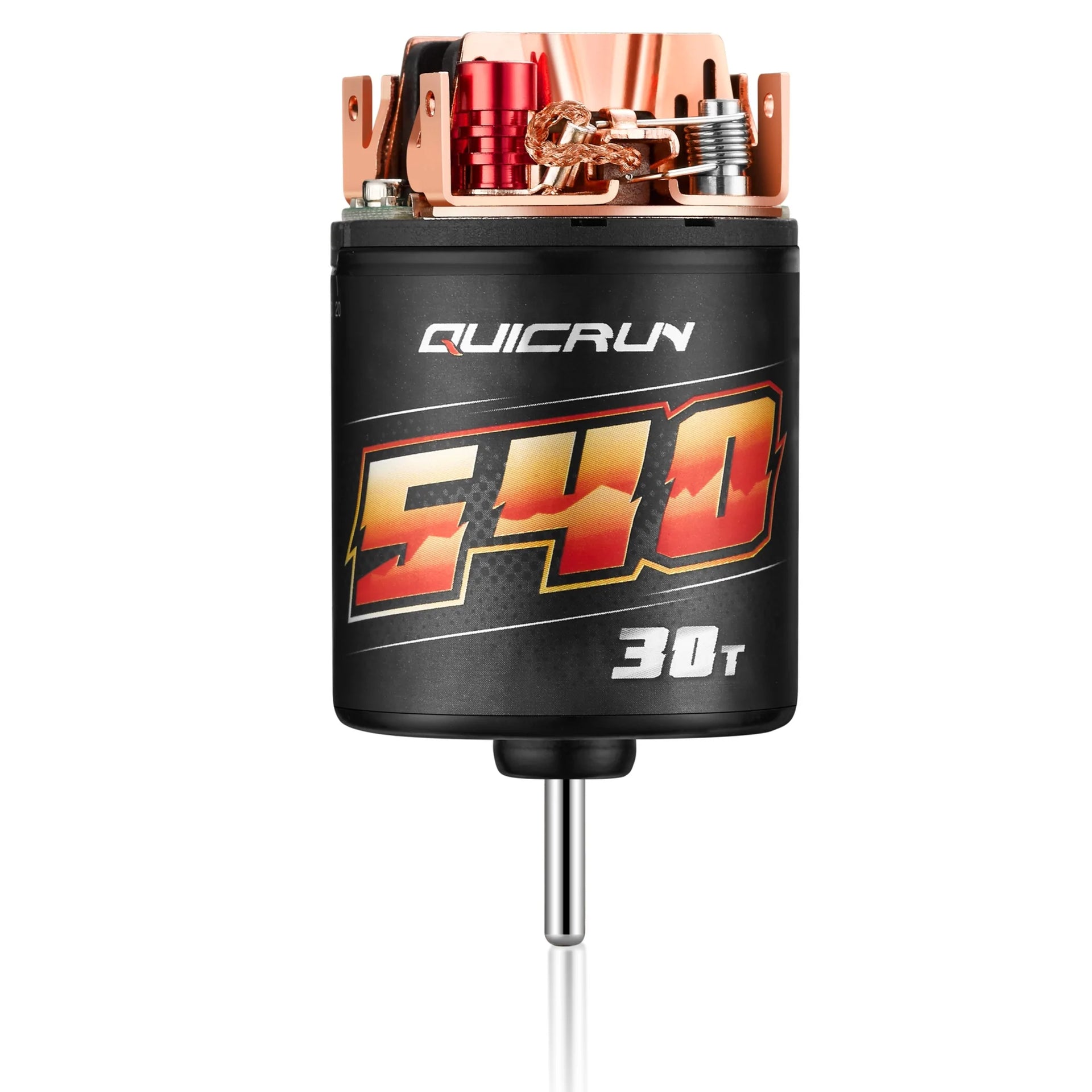

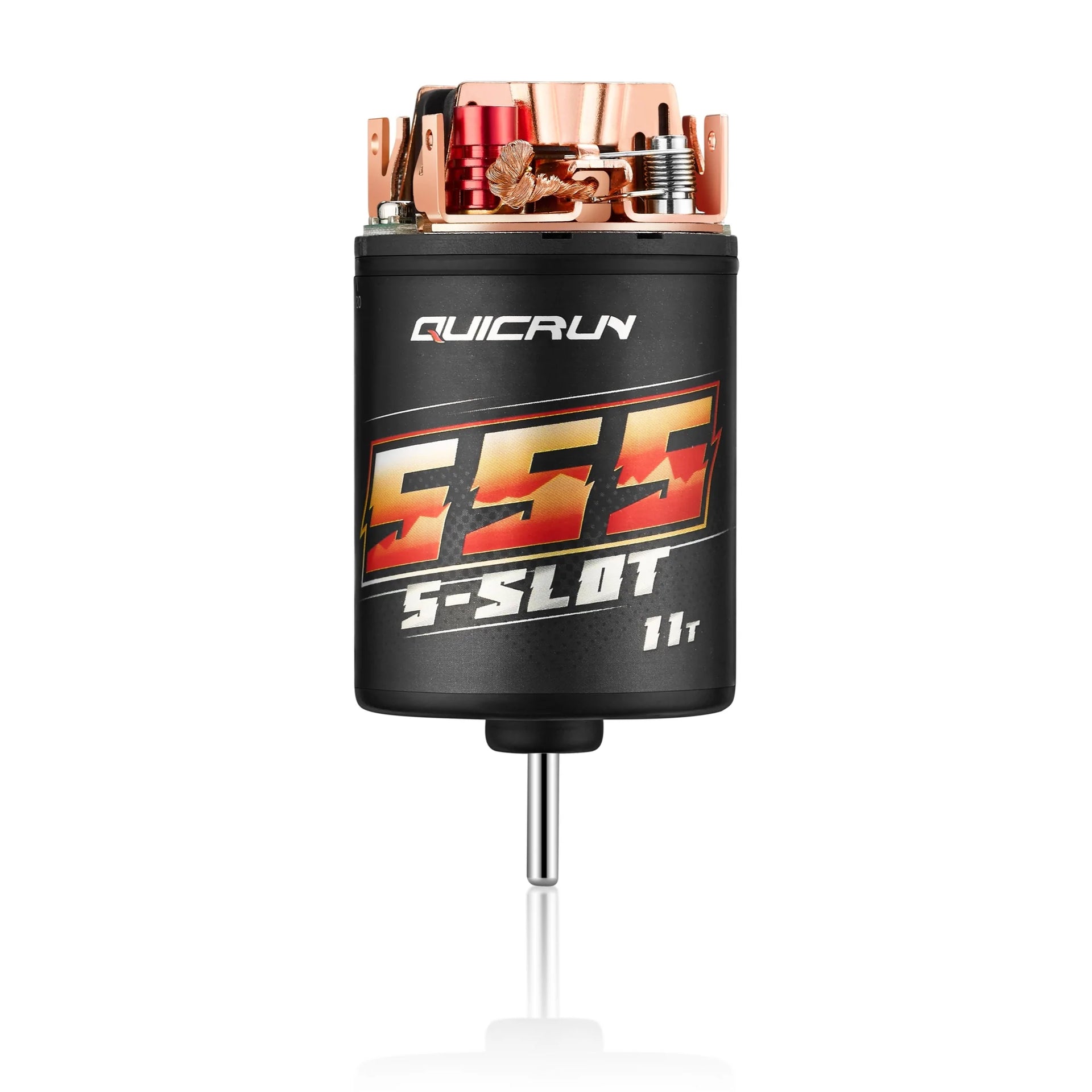

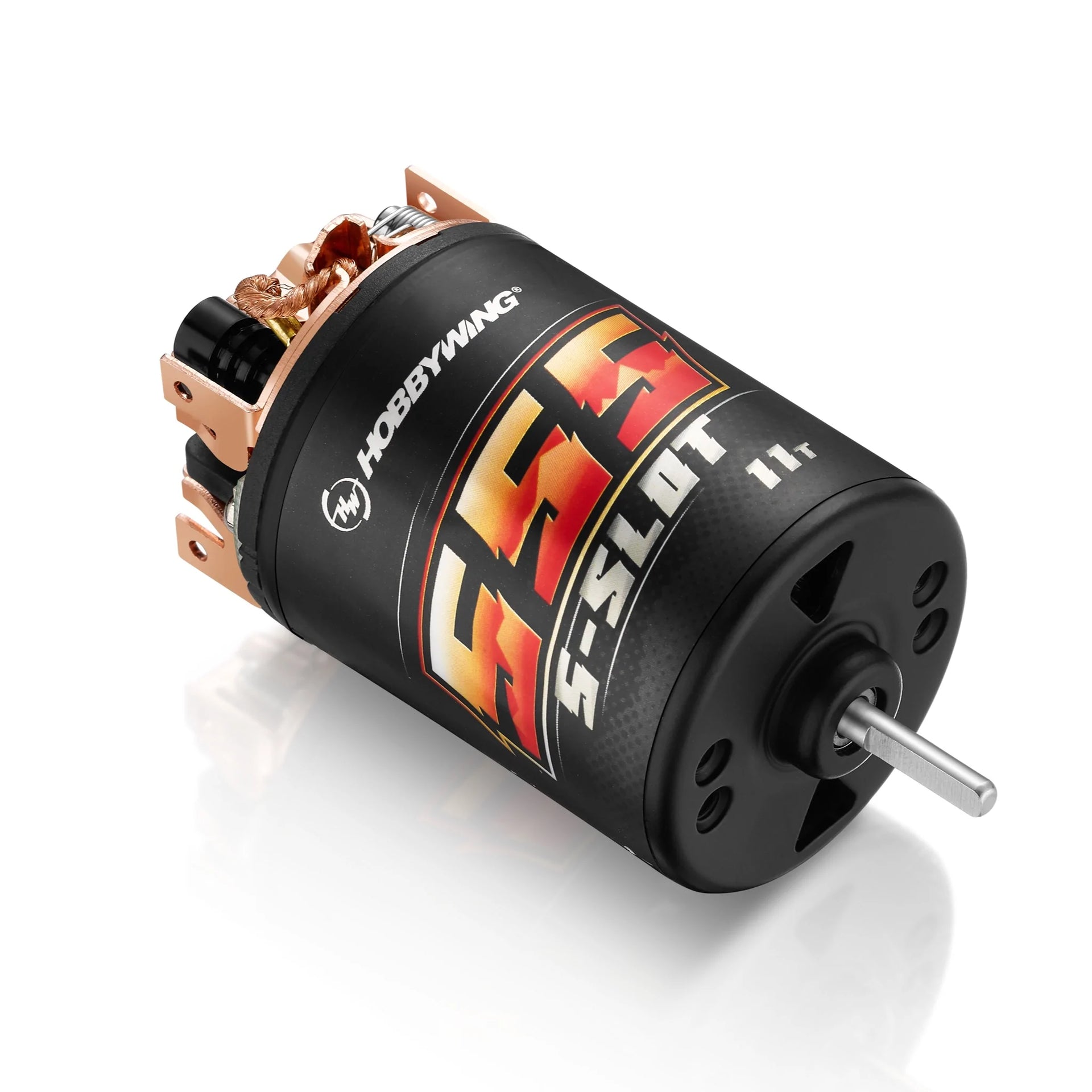

Quicrun Brushed Motor 540/555
- Excellent efficiency
- Outstanding Response and Control
- Adjustable mechanical timing of the motor
- Modular design for easy service and cleaning
|
Model |
QUICRUN Brushed 540-30T |
QUICRUN Brushed 540-40T |
QUICRUN Brushed 555-11T |
QUICRUN Brushed 555-13T |
| PN | 30404313 | 30404314 | 30404315 | 30404316 |
| Slot | 3 | 3 | 5 | 5 |
| Turns | 30T | 40T | 11T | 13T |
| (RPM@7.4V) | 14000 | 10500 | 17000 | 14000 |
| Input Voltage | 12.6V | 12.6V | 10V | 12.6V |
| Diameter/ Length(mm) | φ=36mm(1.42in) L=53mm(2.09in) | φ=36mm(1.42in) L=53mm(2.09in) | φ=36mm(1.42in) L=58.5mm(2.30in) | φ=36mm(1.42in) L=58.5mm(2.30in) |
| Shaft Diameter/ Length (mm) | φ=3.175mm(0.125in) L=16.5mm(0.65in) | φ=3.175mm(0.125in) L=16.5mm(0.65in) | φ=3.175mm(0.125in) L=16.5mm(0.65in) | φ=3.175mm(0.125in) L=16.5mm(0.65in) |
| Applications | 1/10 On-road / Buggy / Crawler & 2WD Truck | 1/10 On-road / Buggy / Crawler & 2WD Truck | 1/10 Crawler / Short course truck / Monster truck | 1/10 Crawler / Short course truck / Monster truck |
| Weight | 168g | 169g | 193g | 193g |
*Waranty only applicable at Hobbywing directly* *Garantie Applicable chez Hobbywing seulement*
