X-Maxx Toughness. Monster Truck Style.

The new X-Monster Chassis combines the legendary power and durability of X-Maxx with even more strength, larger size, and a new series of replica monster truck bodies. New belted chevron-pattern monster truck tires deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks of a real monster truck. Choose your favorite Ford or Chevy body (sold separately) and unleash 30+ volts of extreme 8s power!

Legacy of Toughness

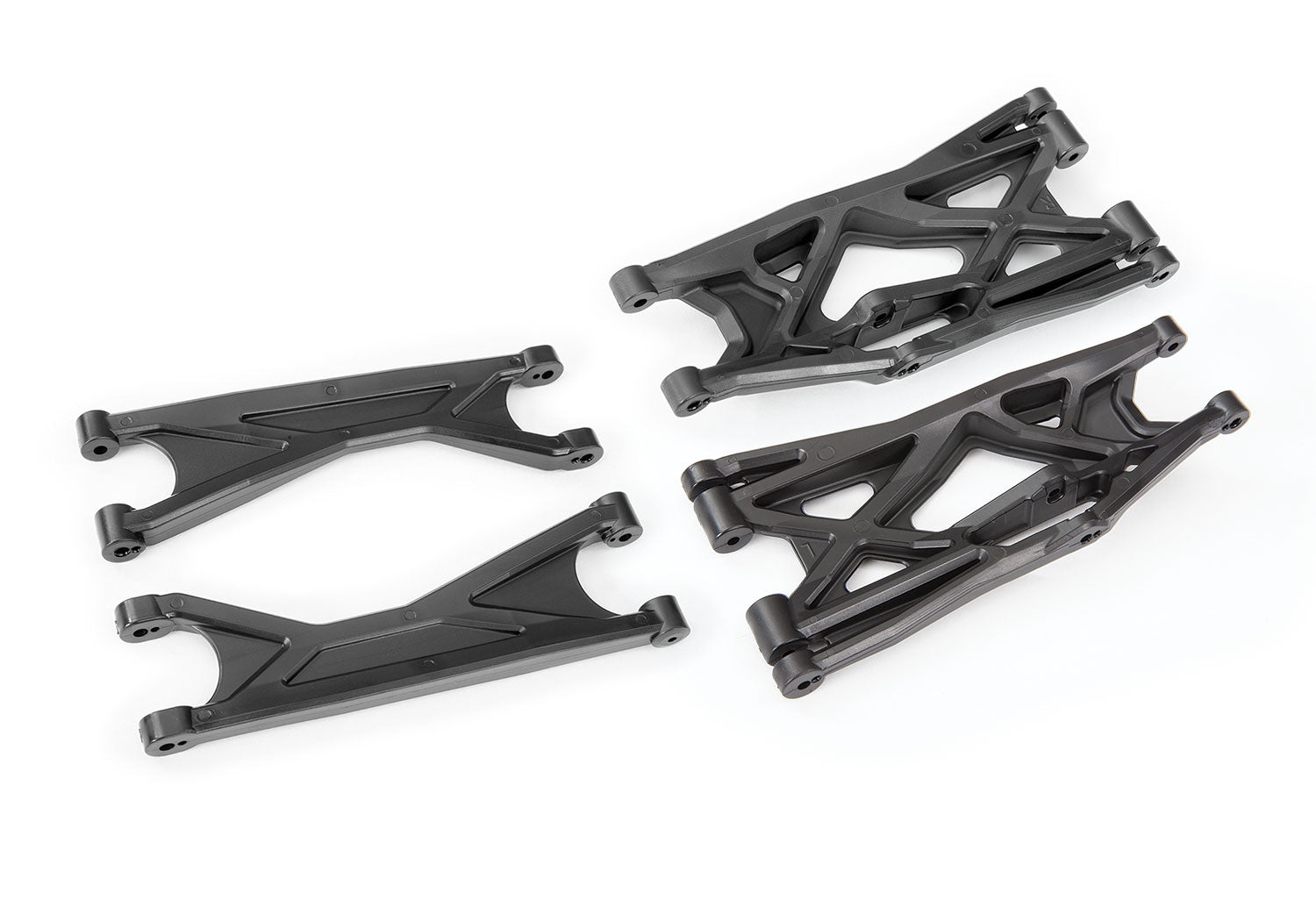

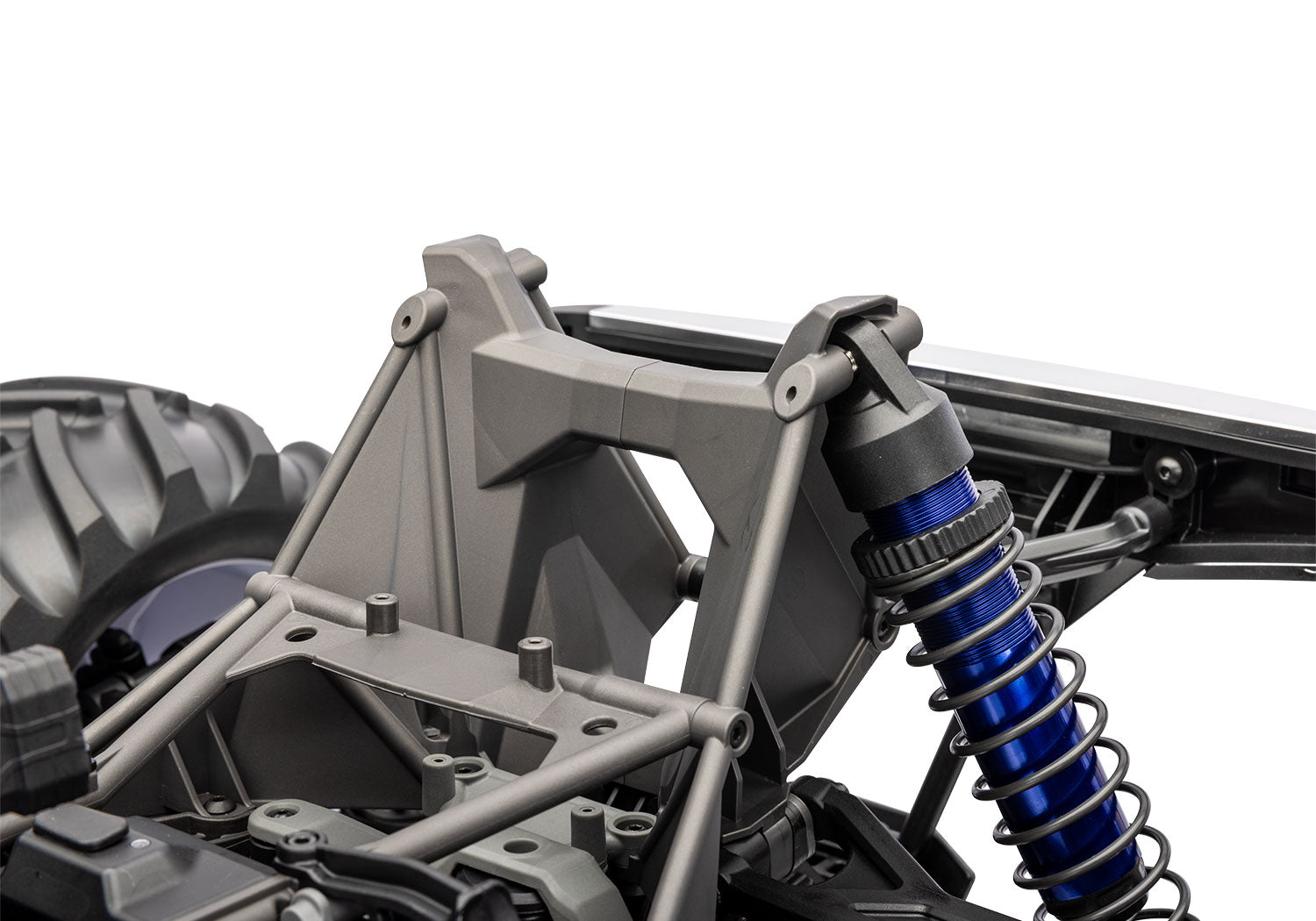

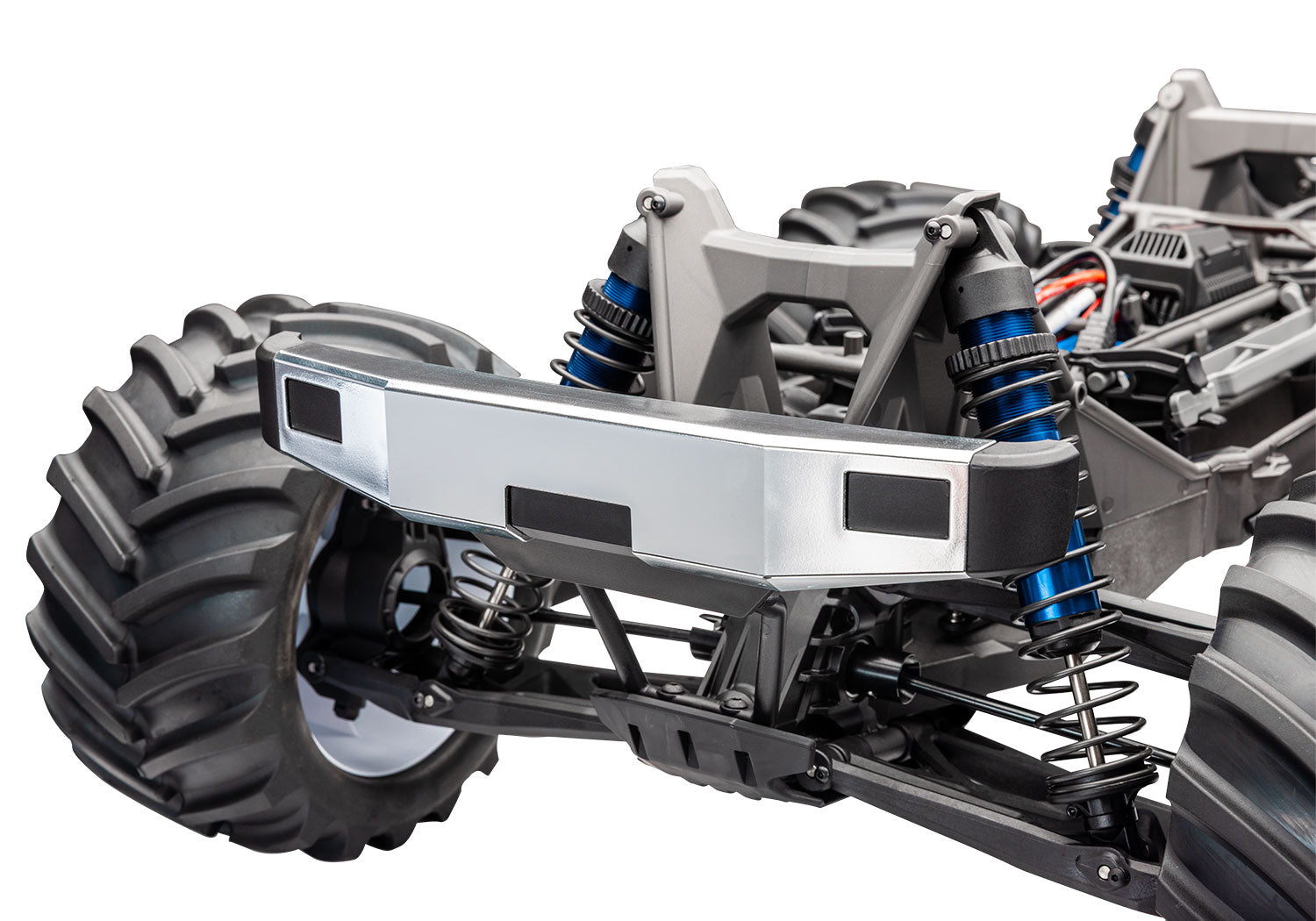

Traxxas set a new standard for RC monster trucks with the release of the original X-Maxx. Since then, X-Maxx has only grown stronger and more powerful with each generation. The new X-Monster Chassis incorporates the latest and greatest X-Truck^® upgrades to create the strongest chassis and driveline ever offered.

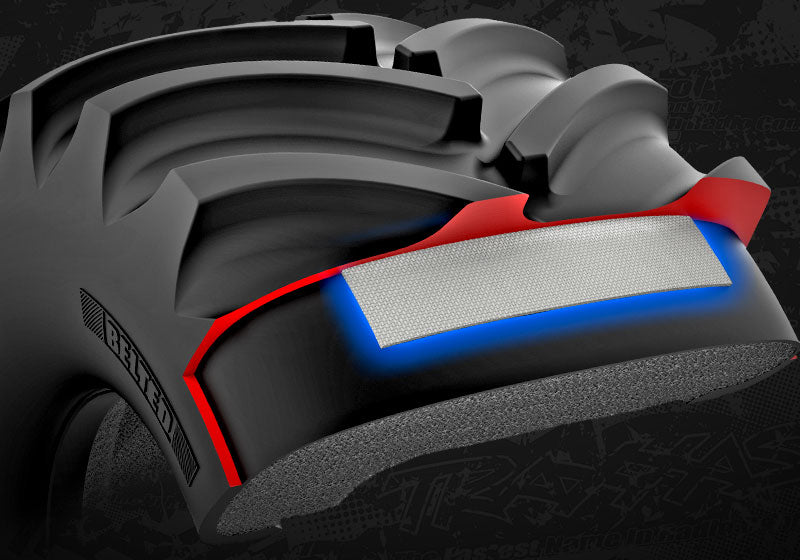

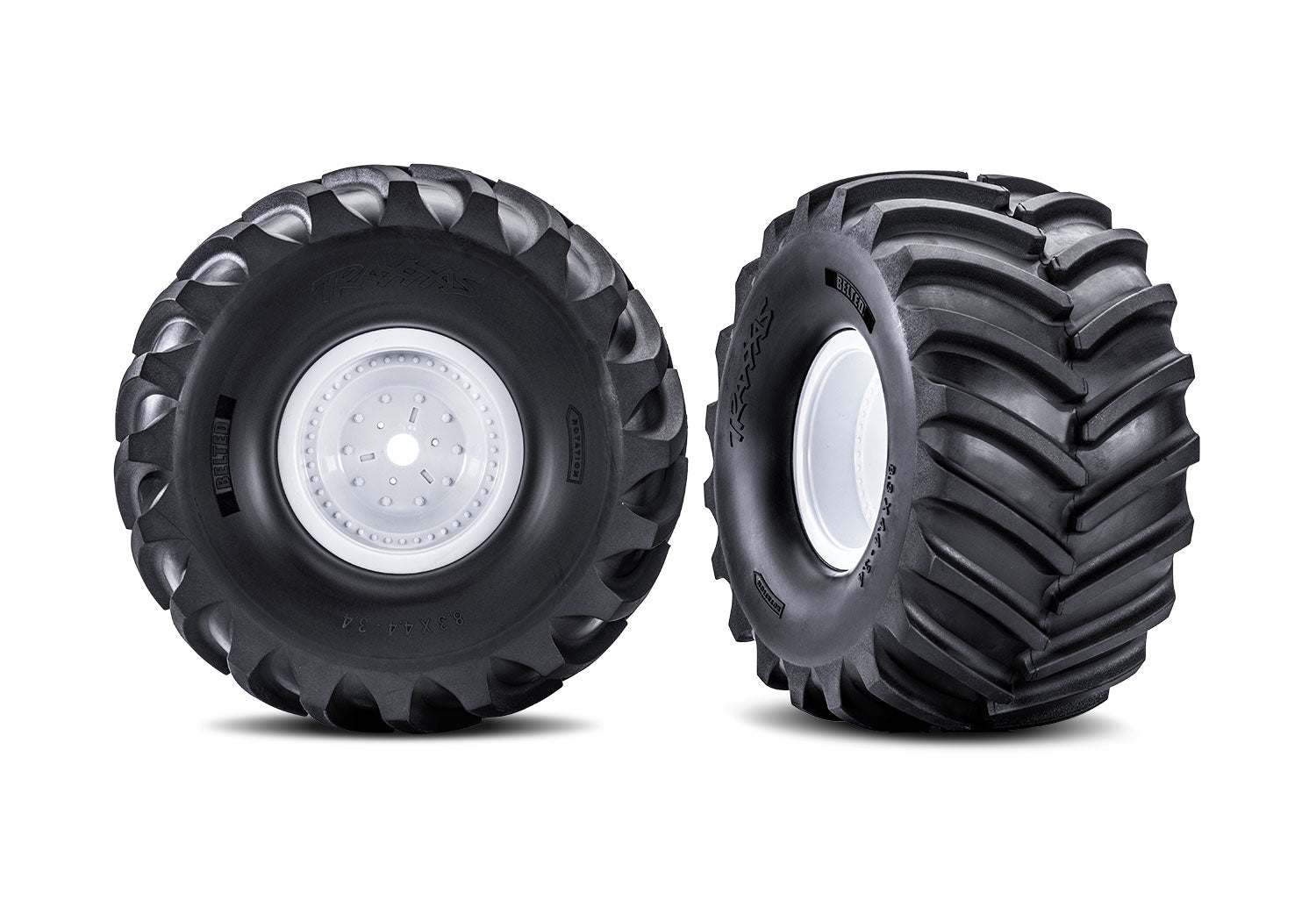

New Monster Truck Wheels & Terra Groove Tires

All new chevron-pattern monster truck tires give the X-Monster Chassis a livelier feel with improved grip and greater control. The huge 8.6” tires are made from an ultra-soft compound for incredible traction with internal belting to reduce ballooning. Replica white monster truck wheels feature military-style hubs for an authentic scale appearance.

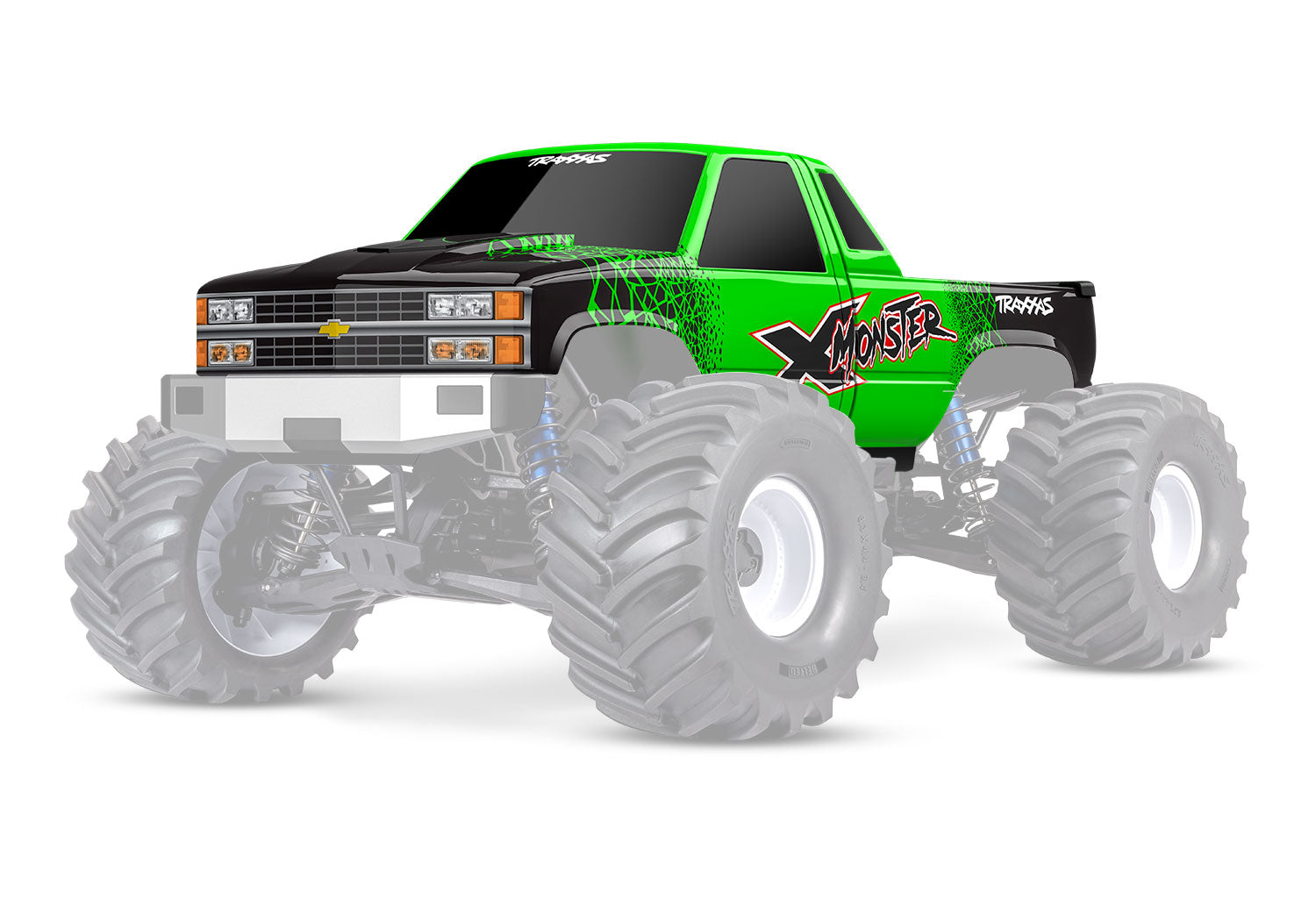

Choose Your Body (Sold Separately)

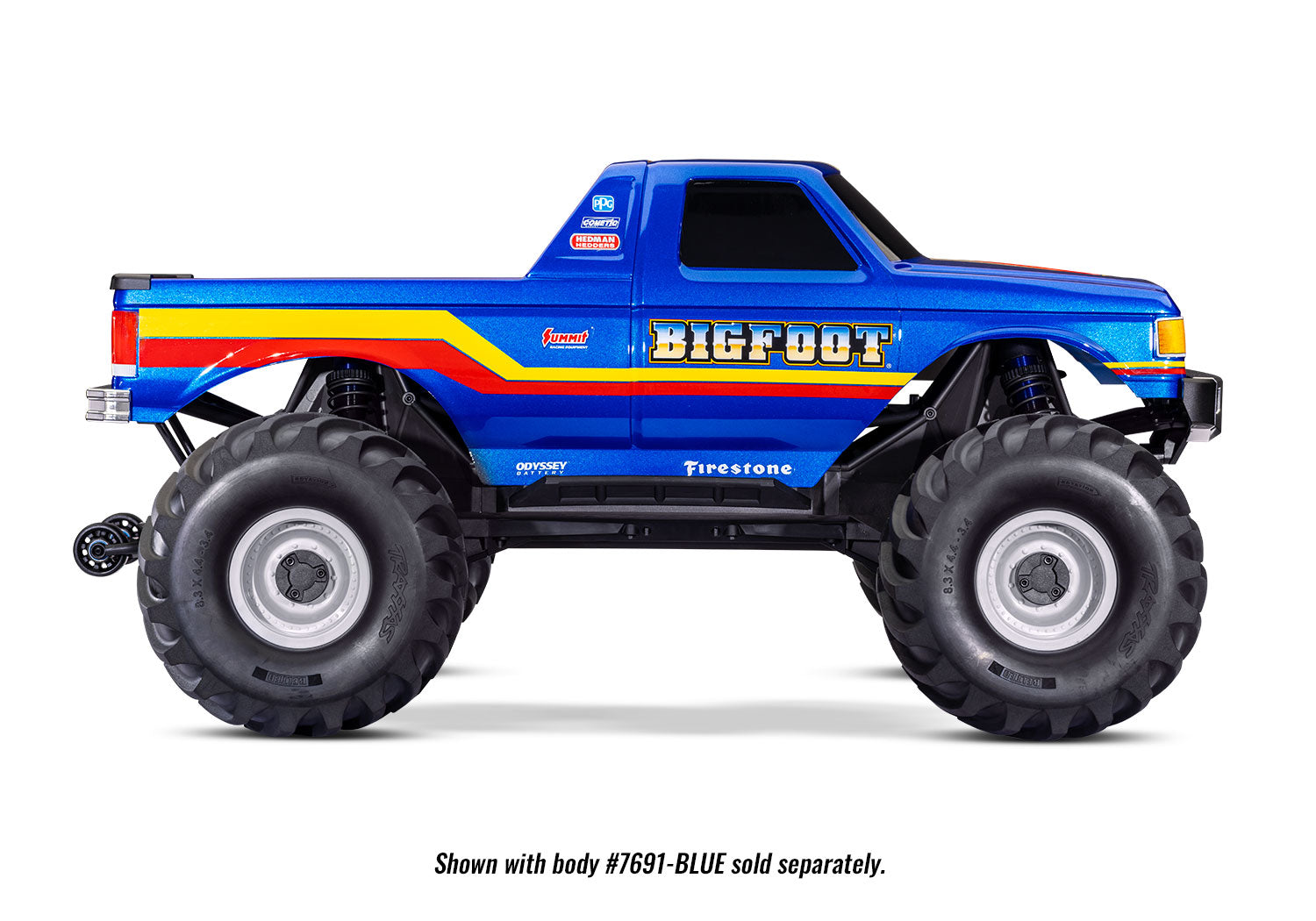

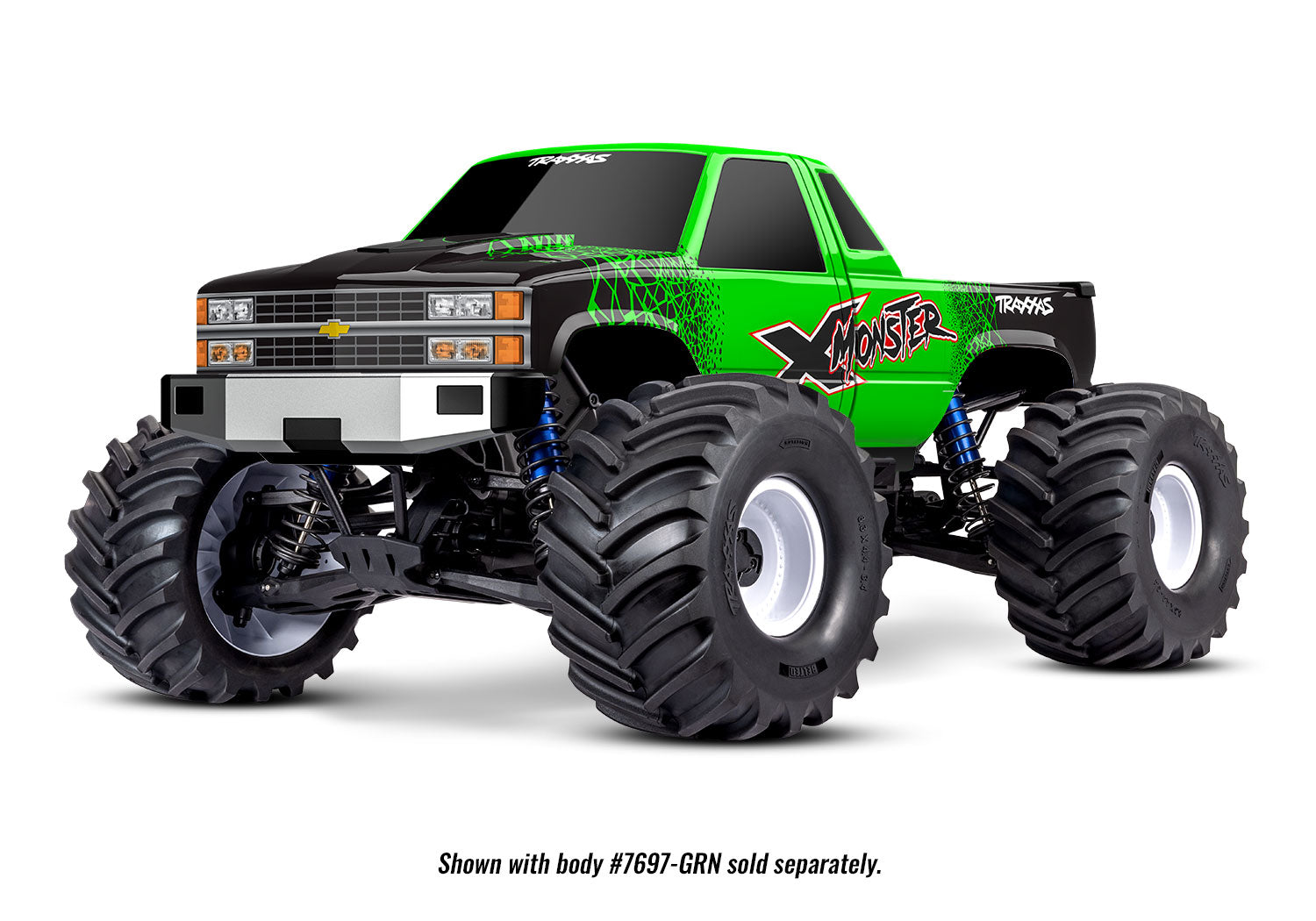

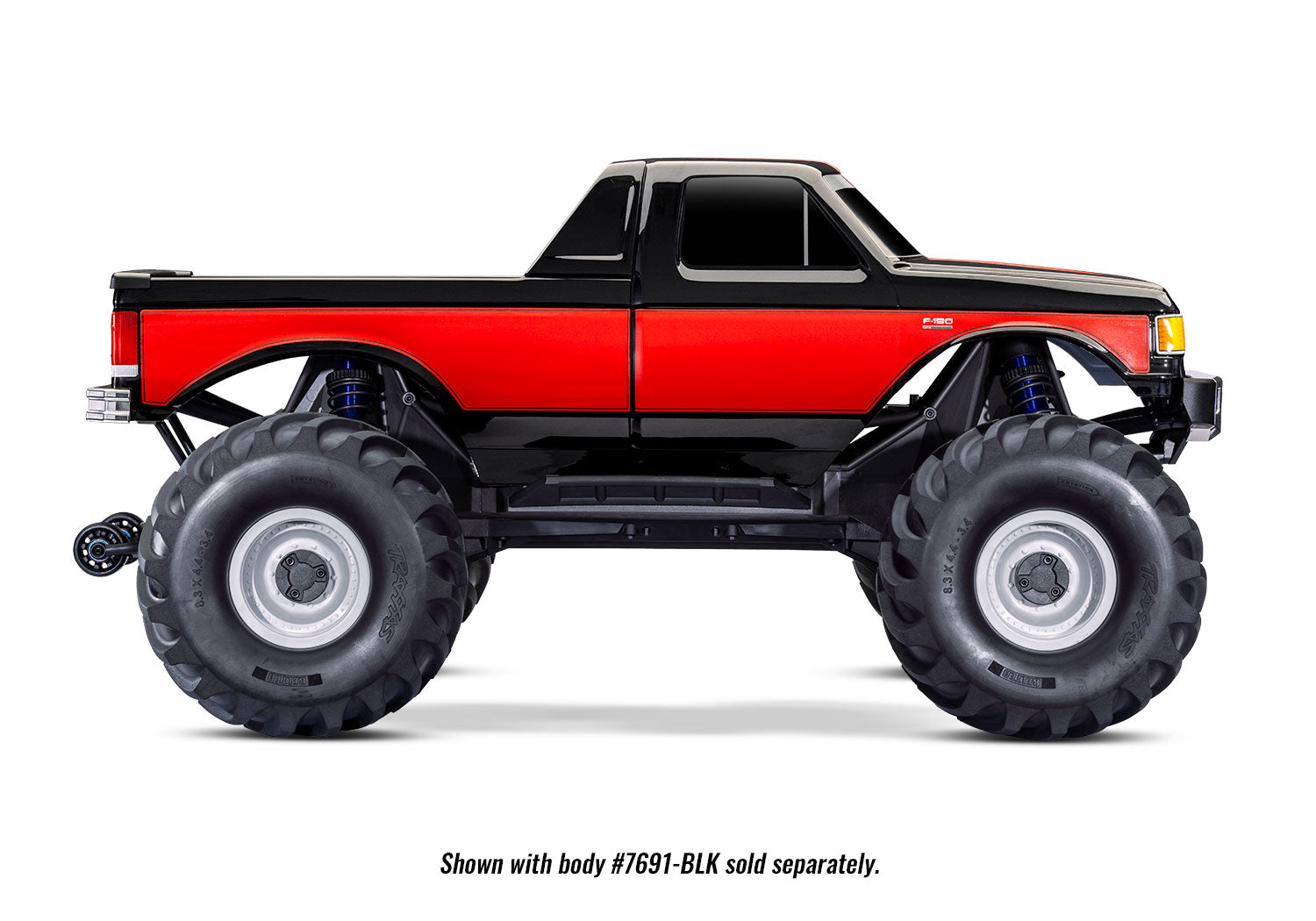

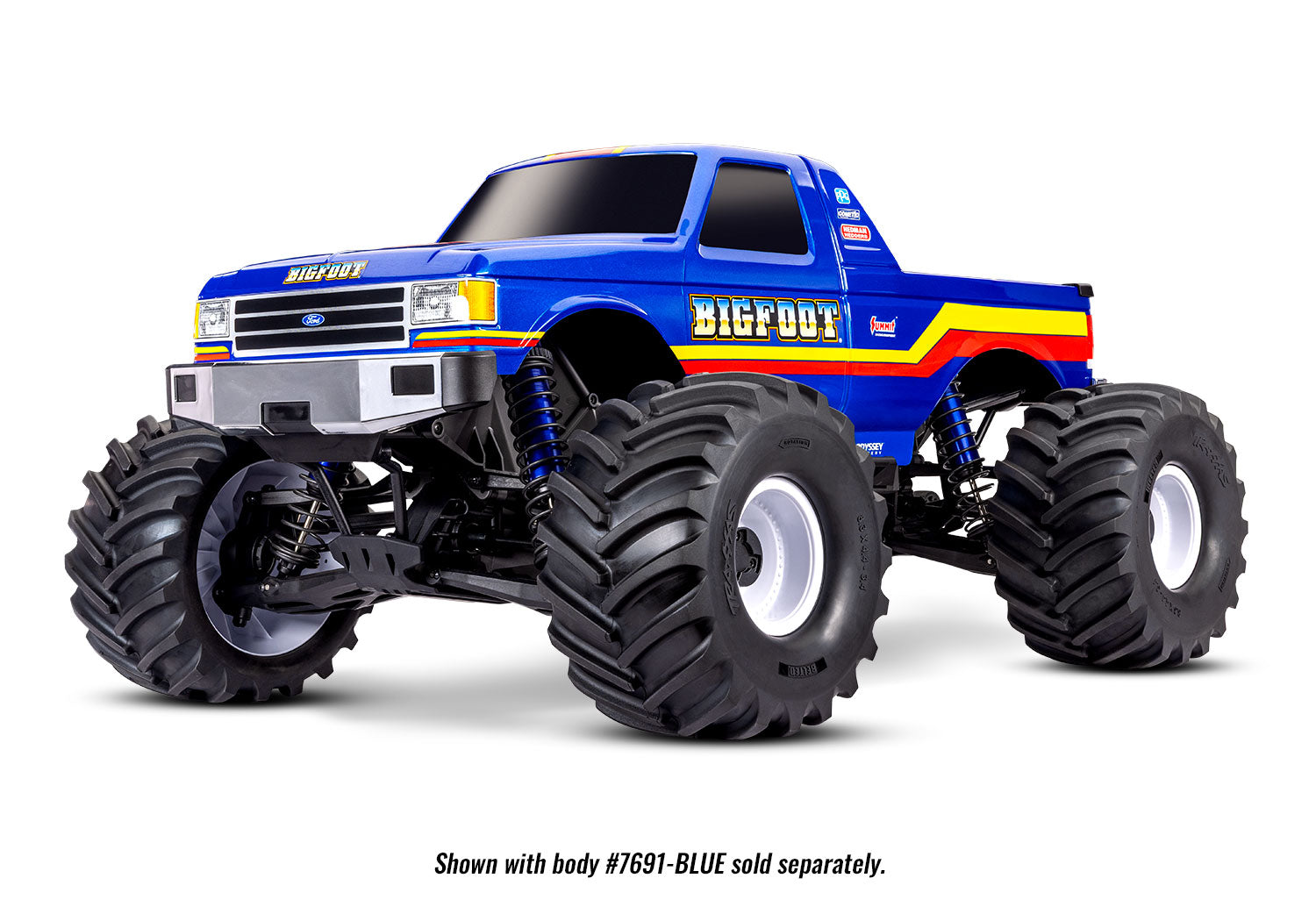

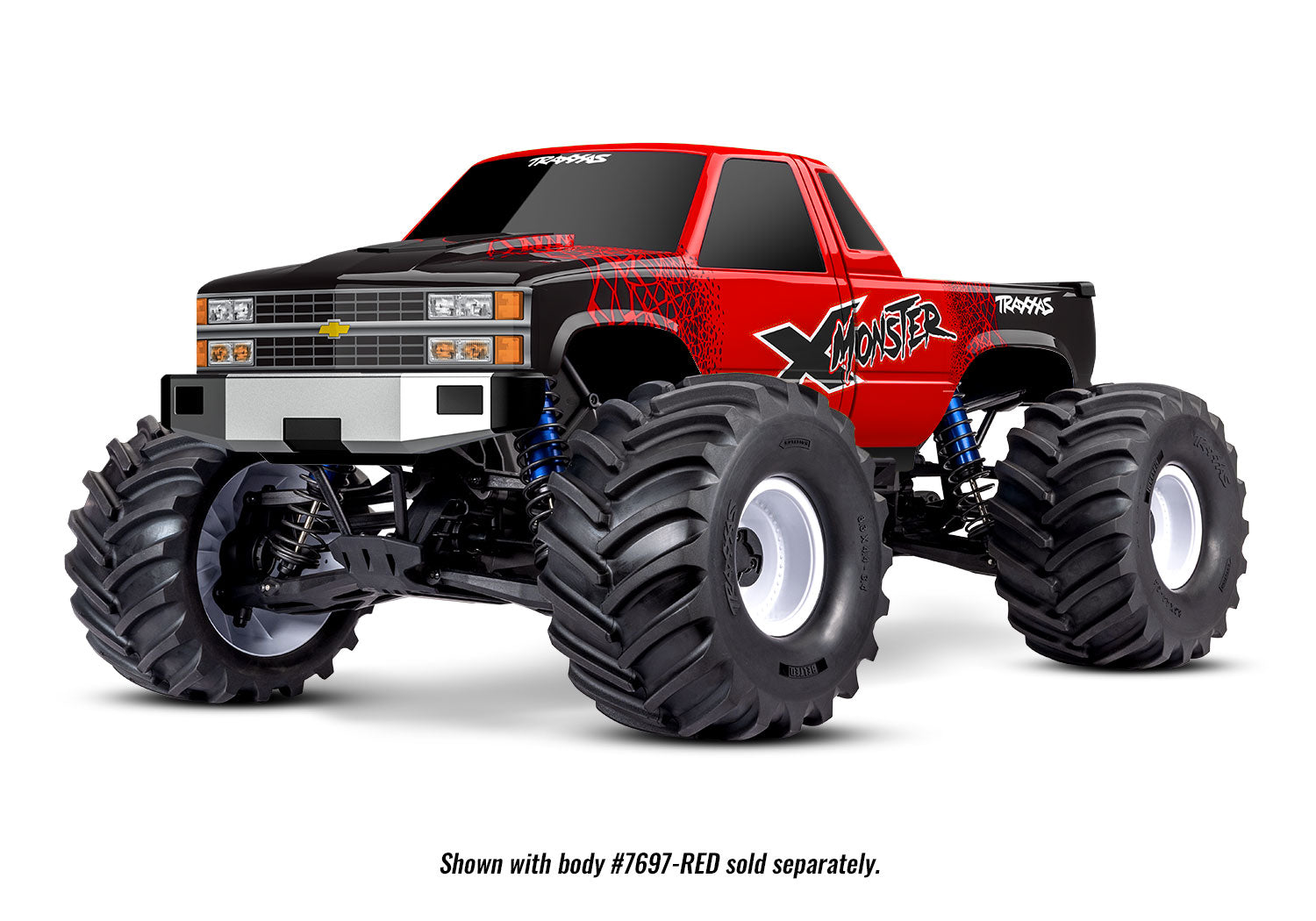

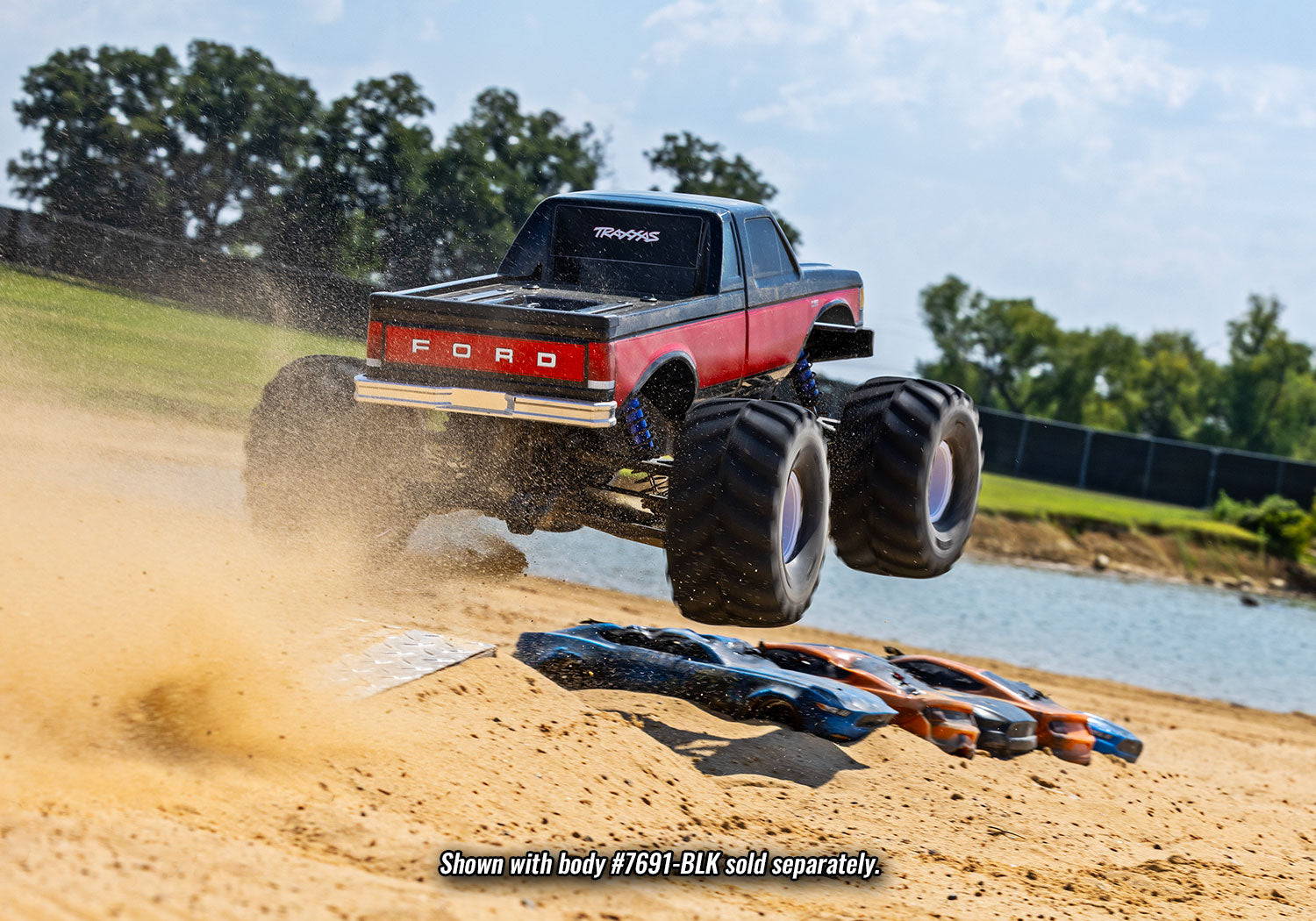

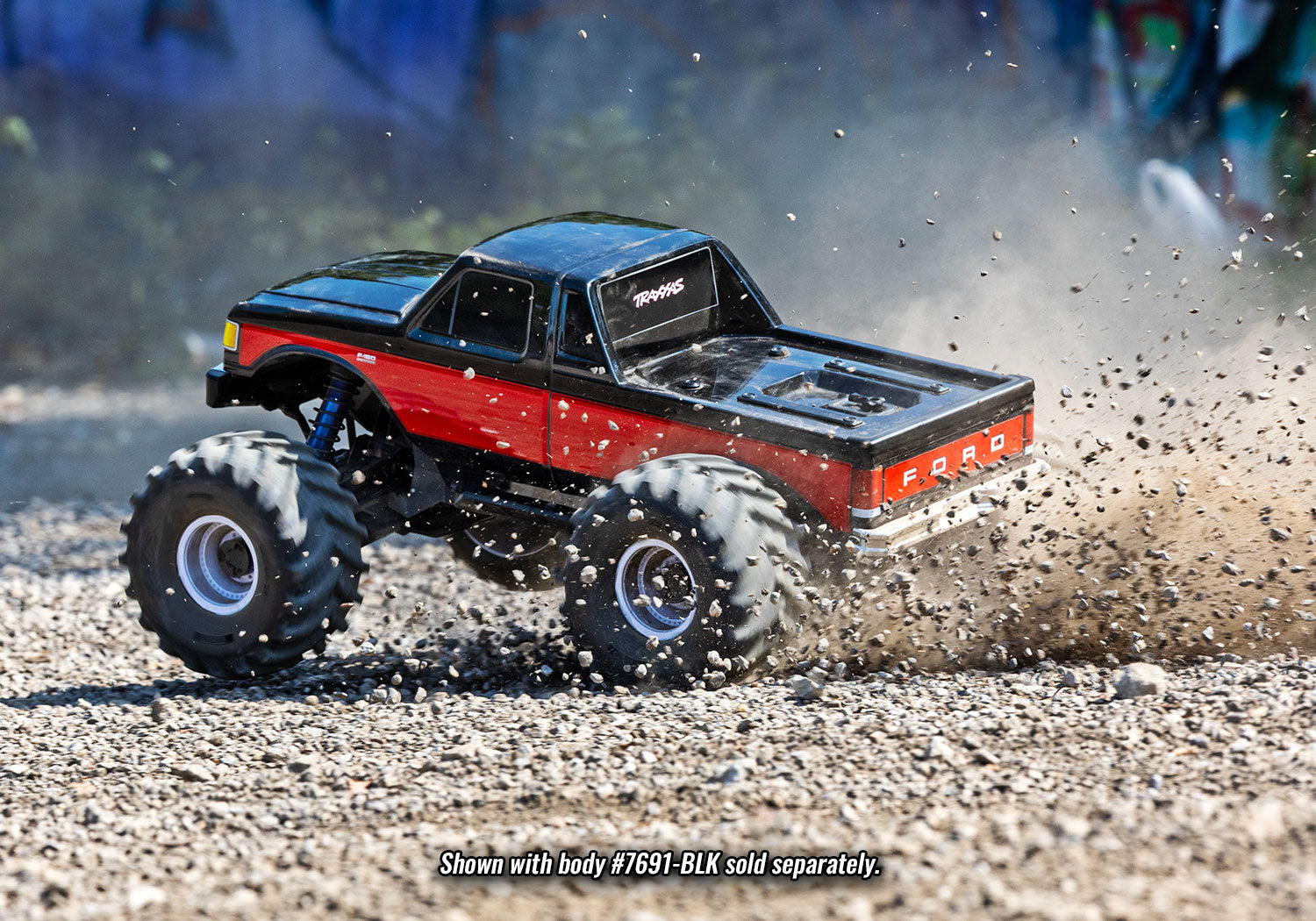

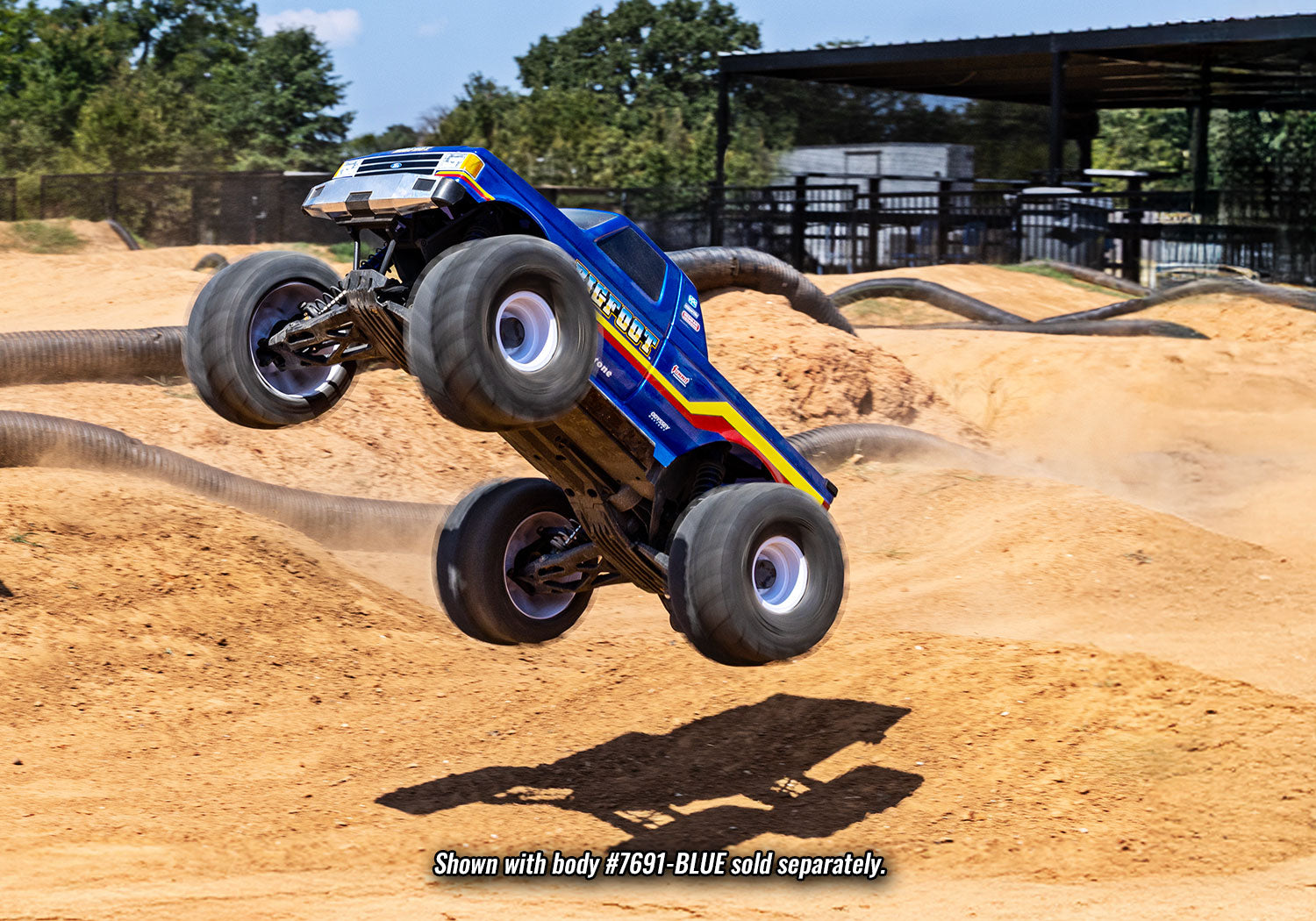

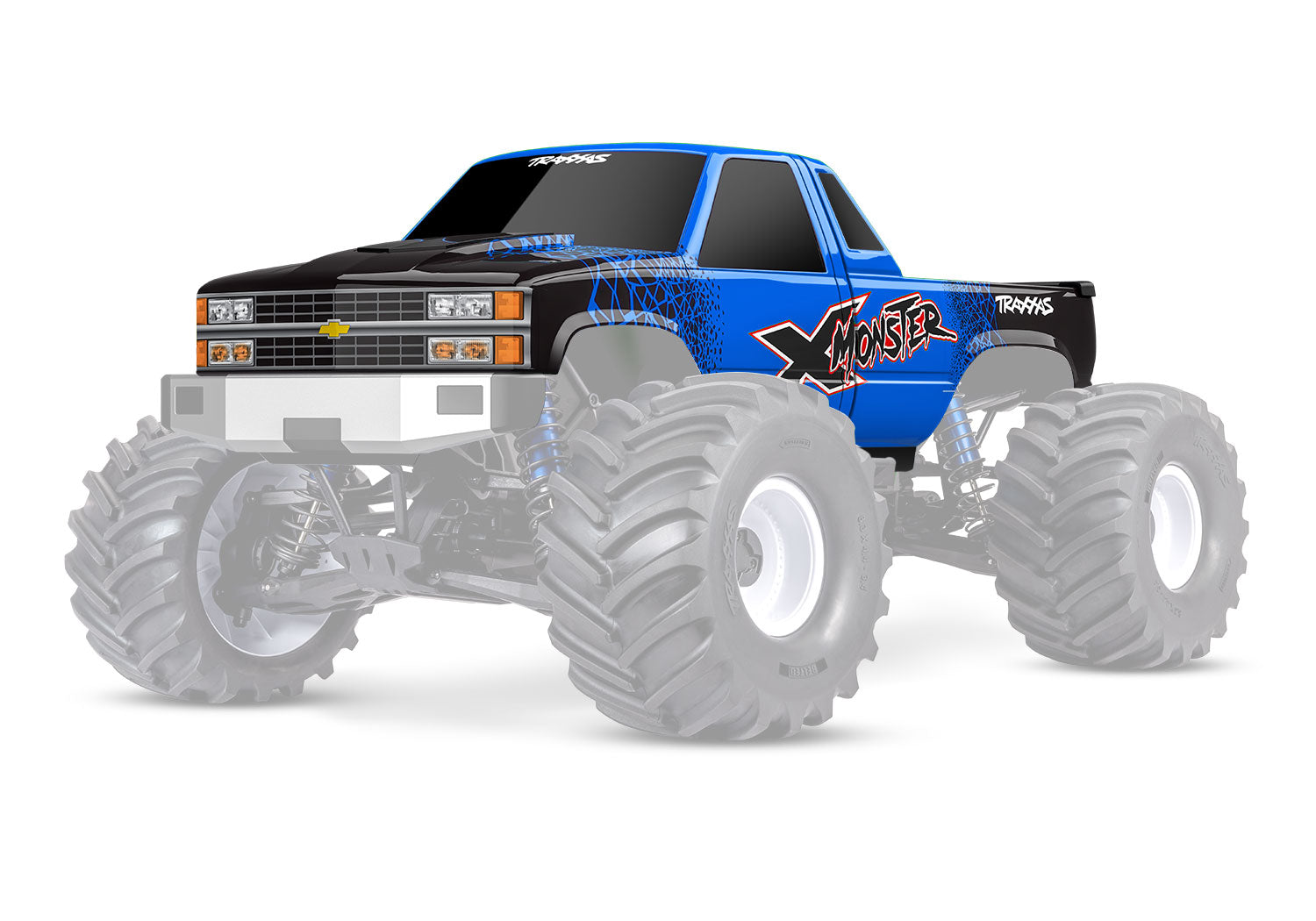

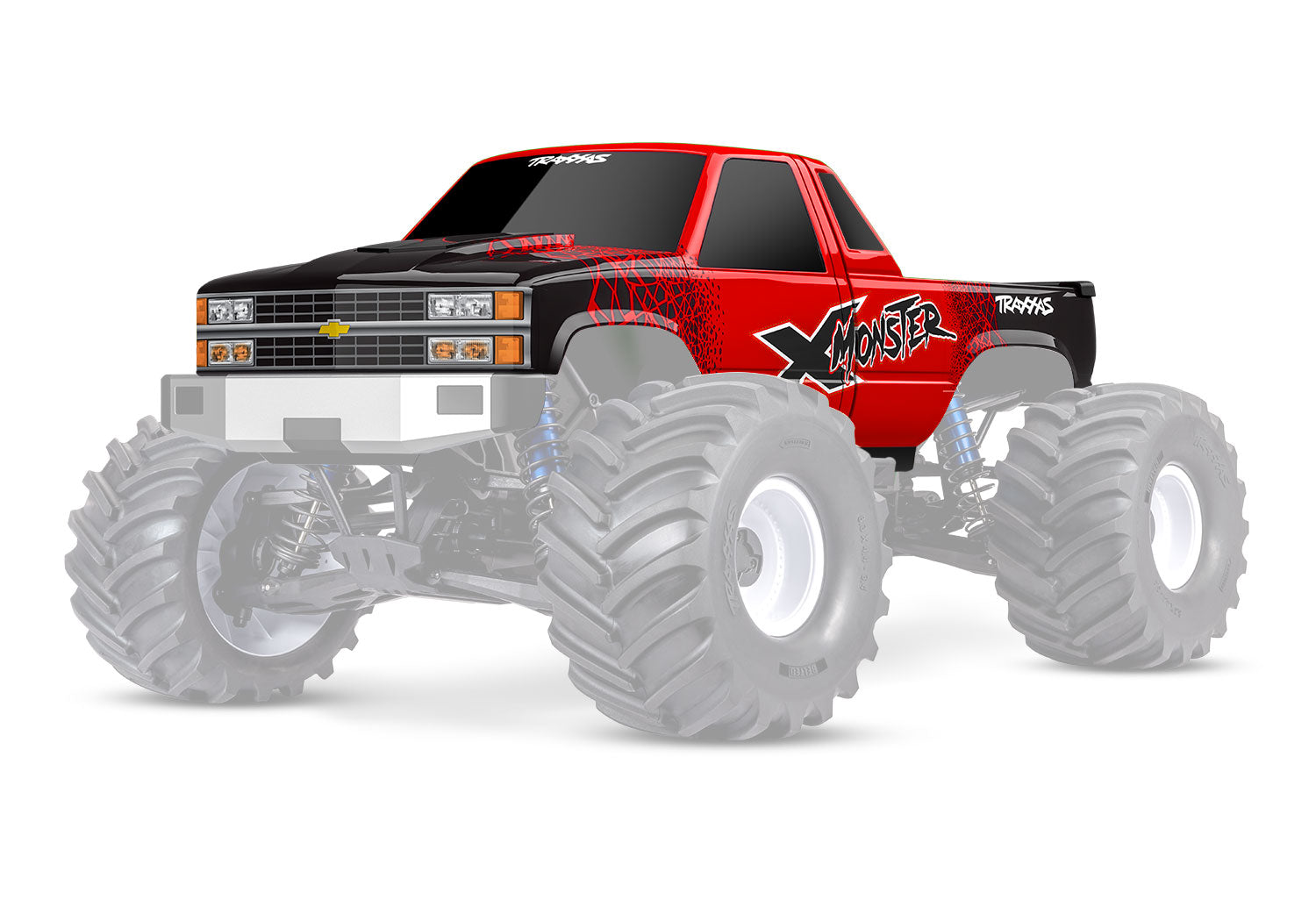

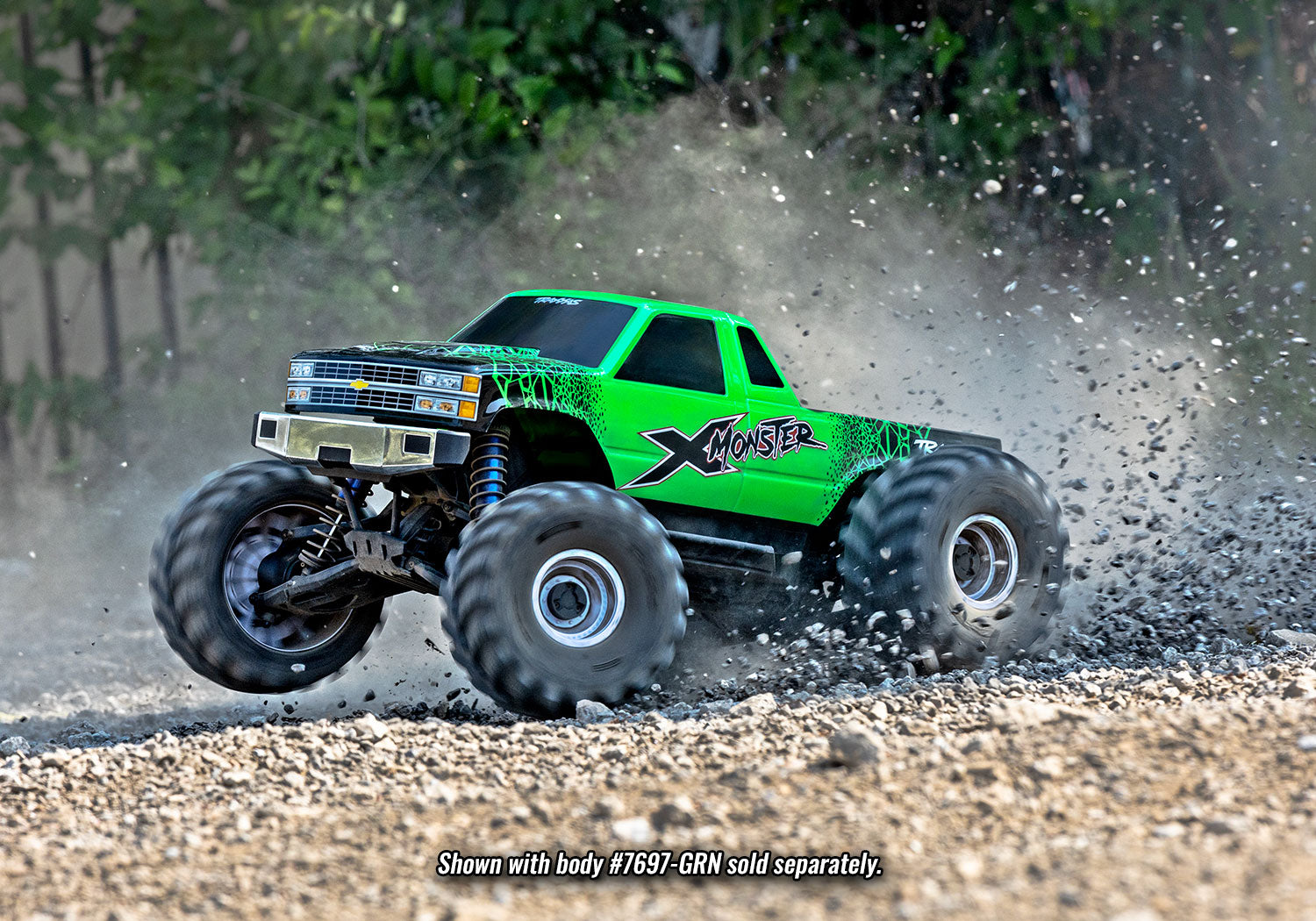

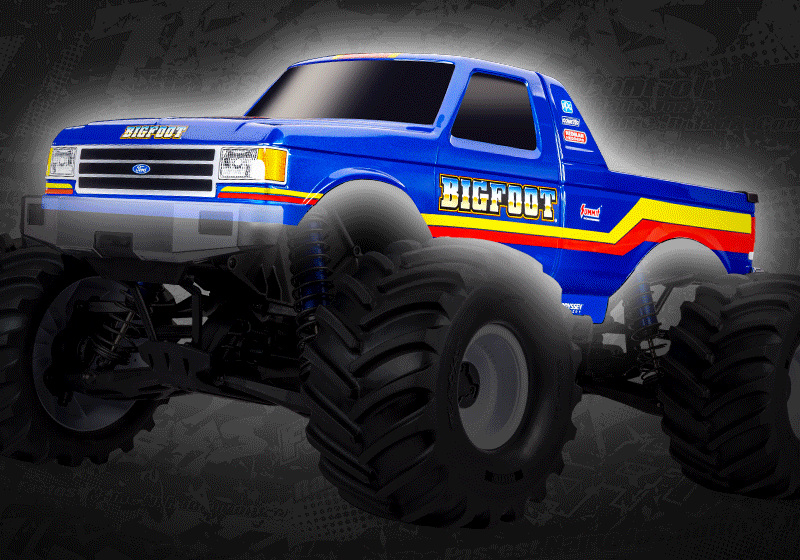

Pair the X-Monster Chassis with a replica Ford^® F-150^®, Chevrolet^® C/K, or BIGFOOT^® No. 8 body (sold separately). Each body features a full-length reinforced body cage for maximum rigidity. Already have a custom-painted X-Maxx body? The X-Monster Chassis also accepts existing X-Maxx clipless bodies!

Model Name:	X-Monster Chassis
Type:	Monster Truck
Speed:	50+ mph with two 4s LiPo batteries and optional speed gear (sold separately)
Skill Level:	6
Scale:	X-Truck
Weight:	19.1 pounds (8.66 kg)
Length:	30.67 inches (779 mm)
Width:	21.3 inches (540 mm)
Front Track:	21.3 inches (540 mm)
Height:	13.99 inches (355 mm)

Wheelbase:	18.92 inches (480 mm)
Center Ground Clearance:	4.2 inches (107 mm)
Drive System:	Shaft-driven 4WD
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	1.0 metric pitch

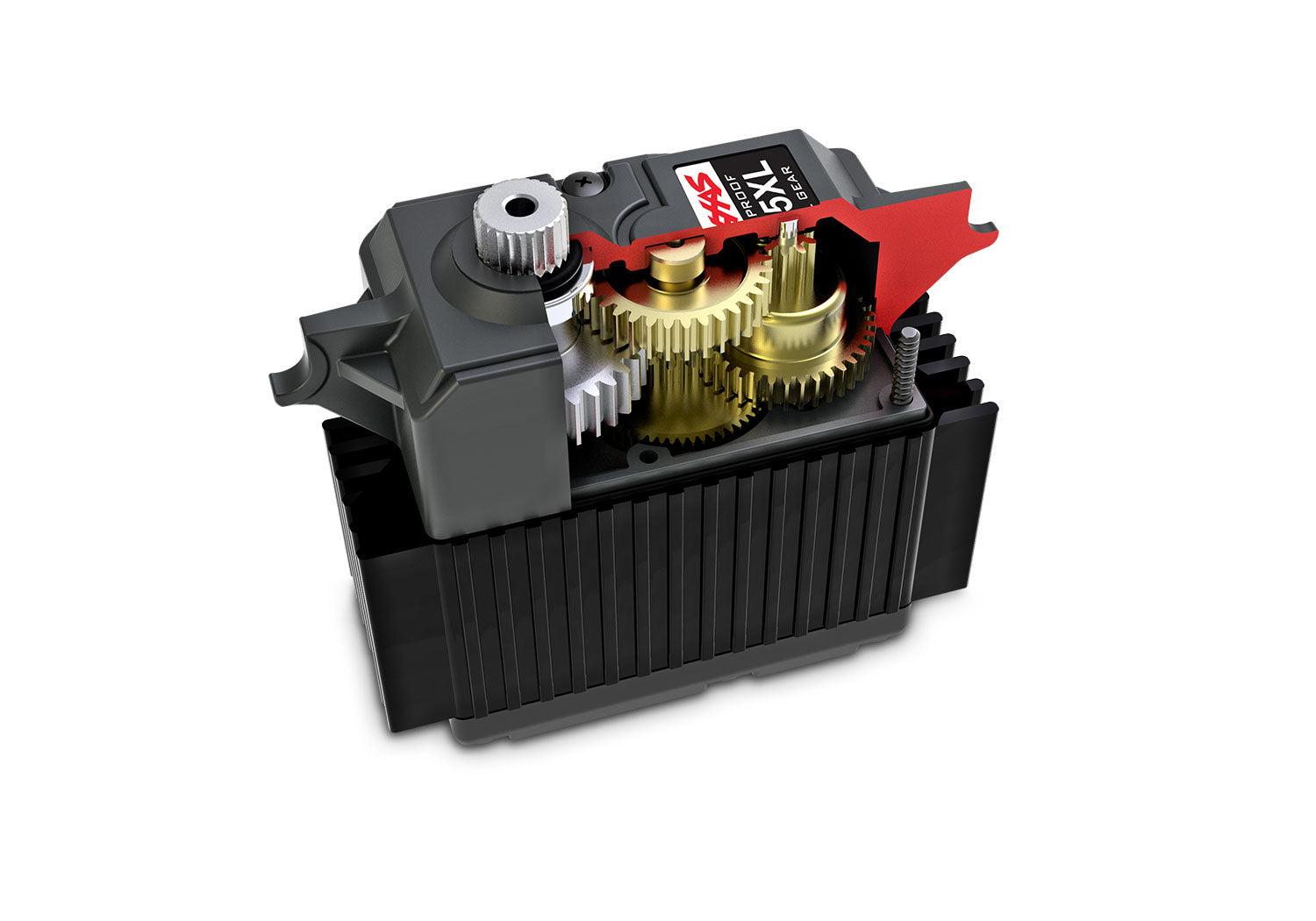

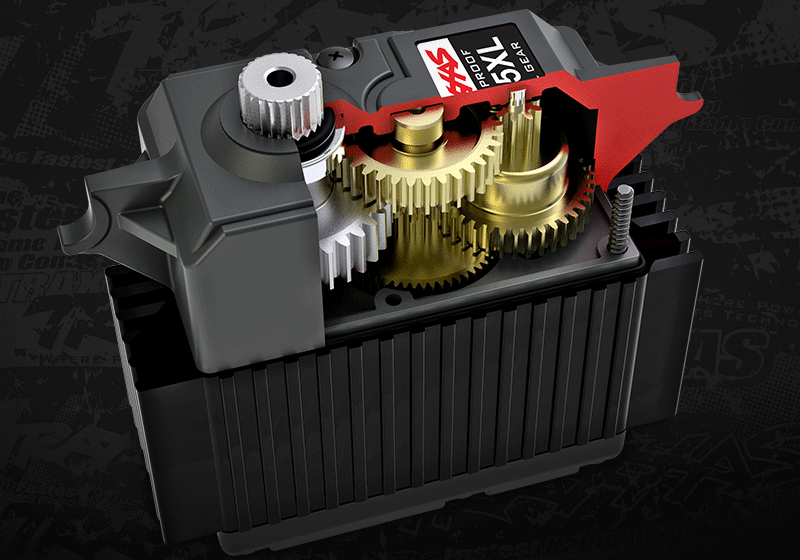

Servo:	2085XL metal gear ultra-high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel
Battery Compartment Specs:	197 mm X 52 mm X 44 mm

MOTOR SPECS

Motor Name:	Velineon 1200XL
Type:	1275 Kv sensorless brushless
Weight:	23.44 ounces (665 g)
Length:	4.32 inches (110 mm)
Diameter:	1.88 inches (48 mm)
Shaft Size:	5 mm
Connector Type:	6.5 mm bullet connectors

ESC SPECS

ESC Name:	Velineon VXL-8s
Type:	Brushless
Case Size:	2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
Weight:	7.60 ounces (215.5 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
Power Wire:	10 gauge Maxx® Cable

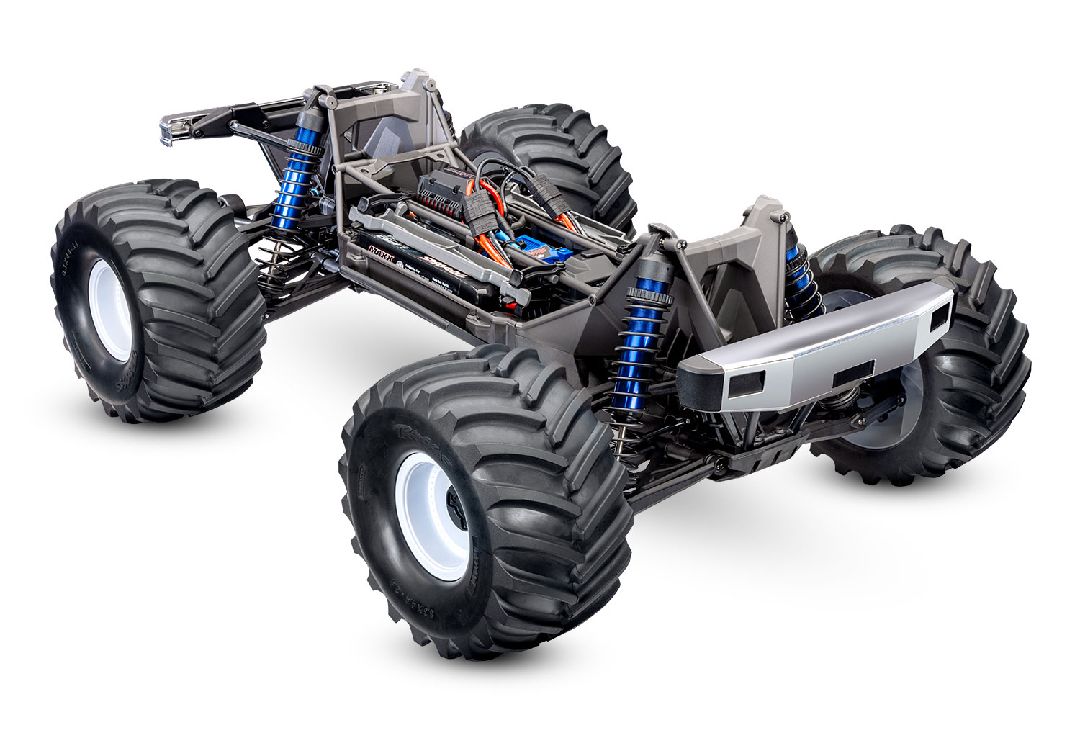

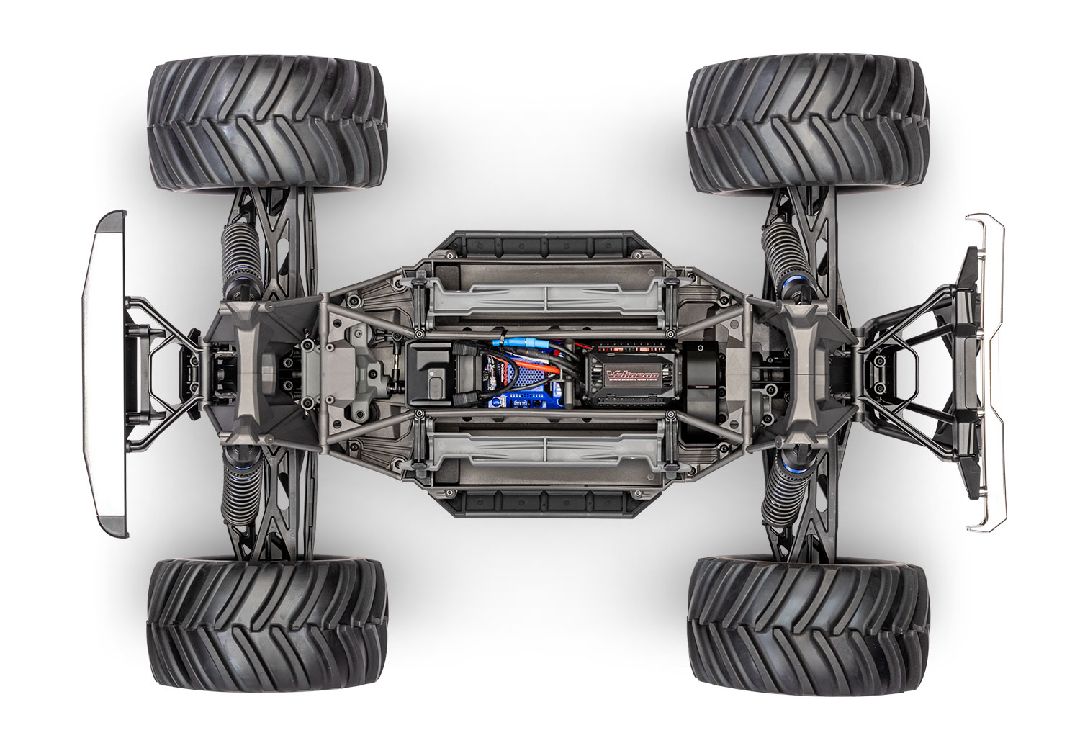

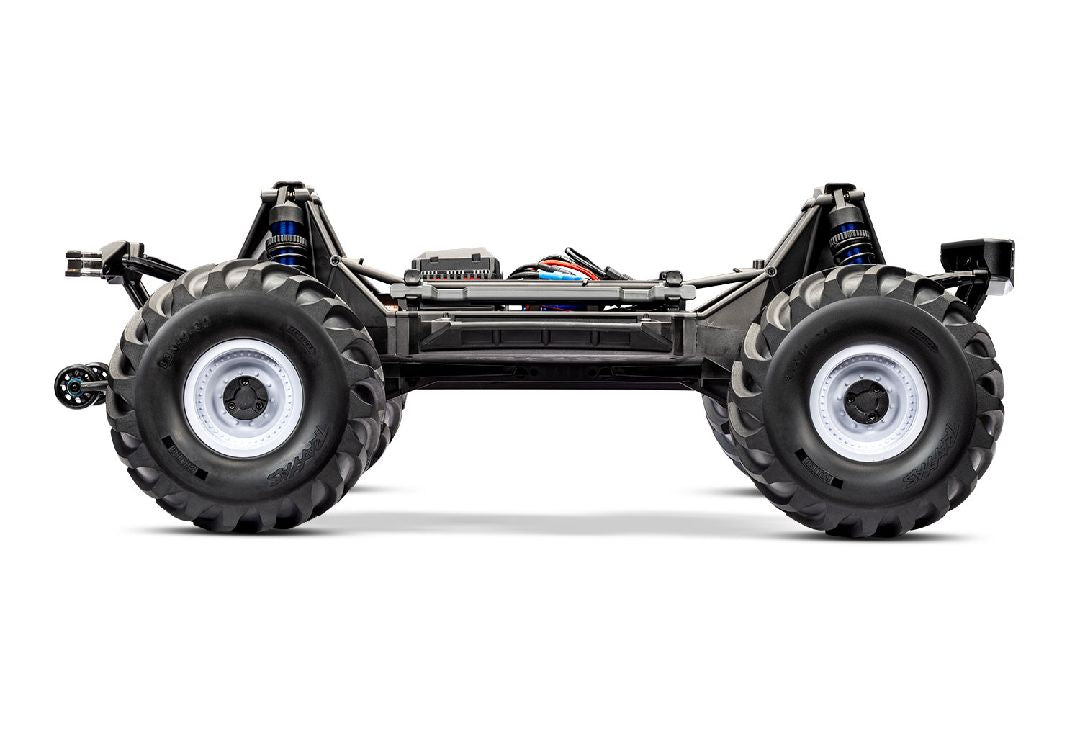

MODEL 77036-4: Fully assembled X-Monster Chassis with TQi™ 2.4 GHz Radio System, VXL-8s Brushless Power System, belted chevron tires. Requires MT body (sold separately).

What’s In The Box:

• X-Monster Chassis with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Optional high speed pinion gear
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Body

  Select your X-Monster body from one of several available options.

• Batteries

  X-Monster requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD^® are recommended for optimal performance (part 2890X).

• Charger

  EZ Peak Live Dual 4s LiPo Charger with iD^®

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
